R251 Series 2U Rackmount Server Case
Leading Provider of Rackmount Case Solutions
As a leading computer case provider, we continuously explore the possibilities of each rackmount case form factor. Beyond our unique 2U rackmount storage server case family, we have developed a generic 2U rackmount server chassis for broader applications. Clients can freely adjust the internal layout and configuration to meet various tasks, making it an excellent starting point for building your first rackmount machine.

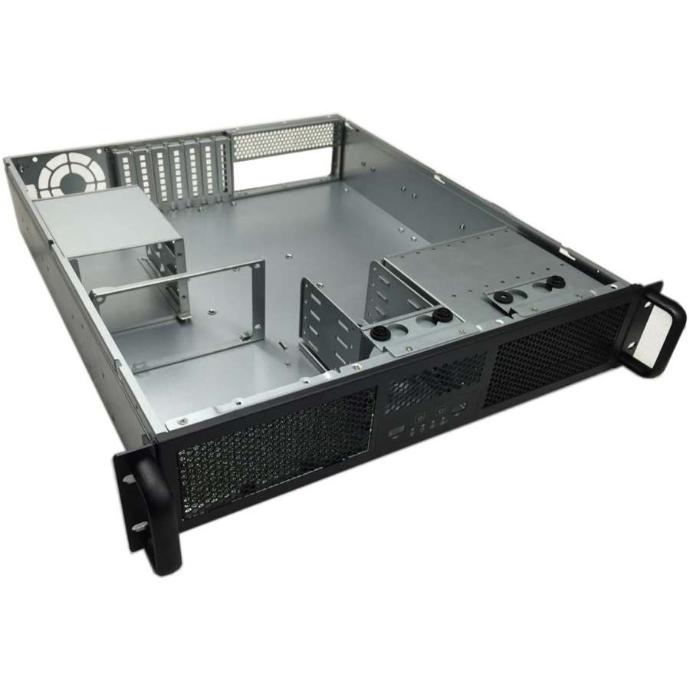

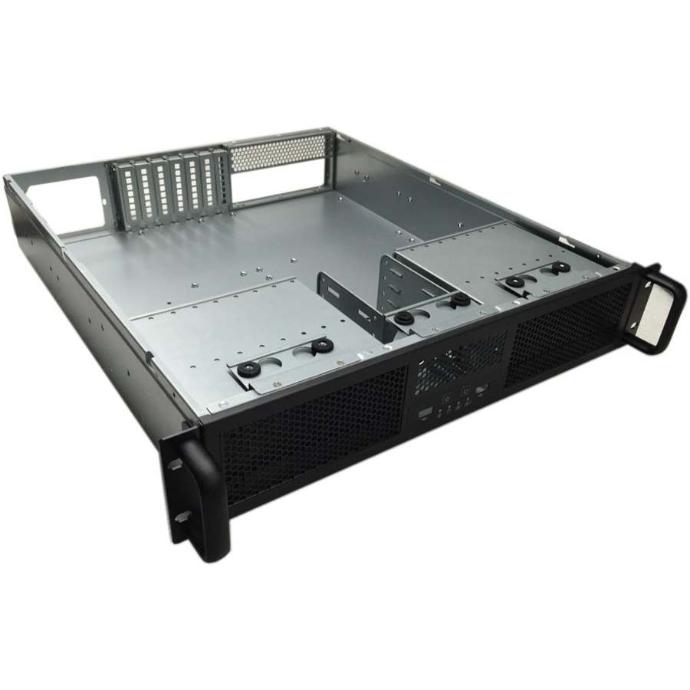

Versatile and Robust YY-R251 Rackmount Chassis
The YY-R251 is a multi-purpose rackmount PC case, featuring a convertible modular design, anti-vibration cage, and dust-proof filter. It is ruggedly constructed with full-height PCI slots and offers abundant optional kits. This chassis is widely adopted in various industrial applications due to its versatility and robust build.
Customizable 2U Chassis for OEM Services
As a professional OEM service provider, we offer customization options for this 2U chassis. Feel free to contact us with any requests, and we’ll do our best to assist you
Features & Benefits
- Supports motherboard size up to 12”x 10.5”
- Rack mount or low profile desktop

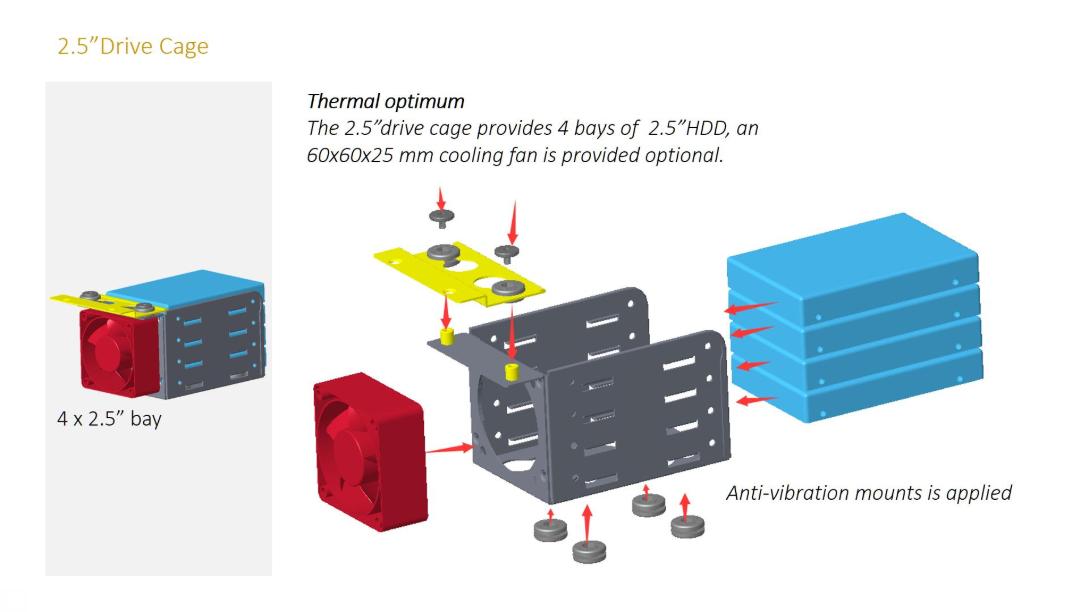

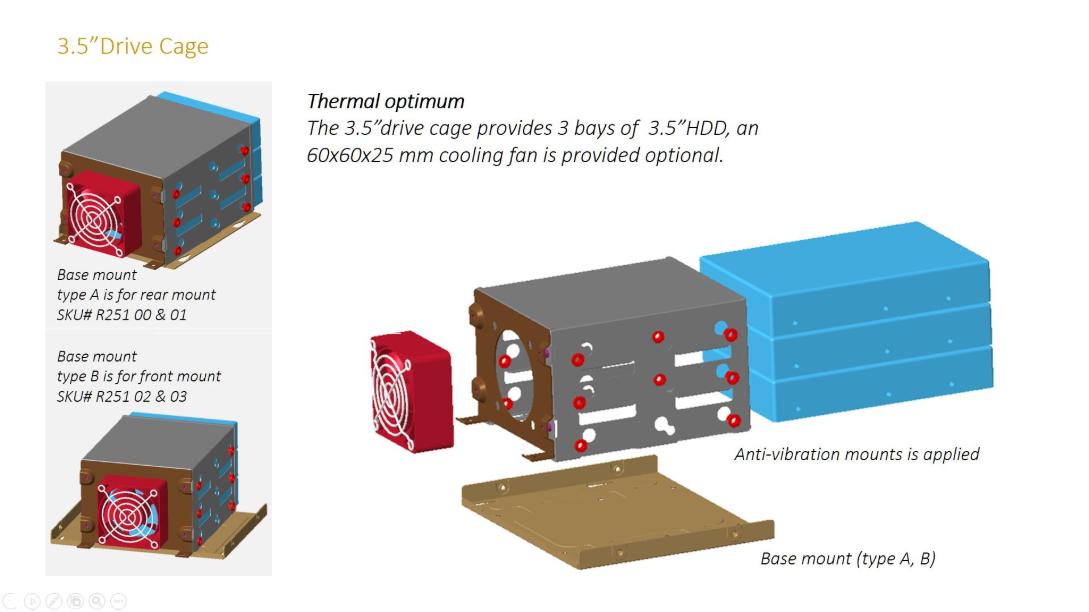

- Anti-vibration designed drive cages
- Versatile configurations on drive cages, power supply and PCI slots
Branding Service
For batch purchasing, we provide advanced custom server case design service.
Our customization service covers Front panel ID Design and Modeling, Mechanical Modification, Production Optimization, Packaging Customization and Branding Service from Logo Printing or Logo Engraving to Branding Carton.
With years of experience, our service is fast and accurate. Feel free to consult us with your any idea or concept,
We can help you find the best custom rackmount server case solution!
Case Study How to Start What we do Why Us

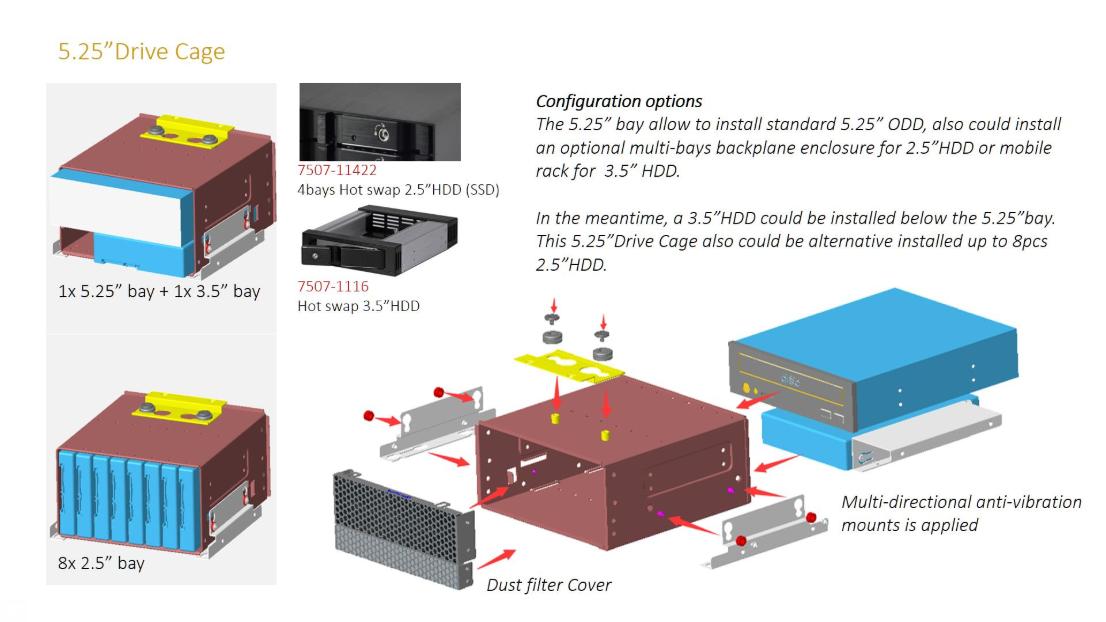

Optional Multi-bays Backplane
Hot Swap 2.5” HDD Enclosure
Aluminum
With Anti-Vibration Tray Design
7507-11142
- Secure HDD with screws in Aluminum carrier and handle
- Patented Anti-vibration design
- Each tray will be touching with 4 resilient points to limit the top-bottom range of the vibration.
| SPECIFICATIONS | |
|---|---|
| Part No. | 7507-11142 |
| Form Factors | 1*5.25 Bay for 4*2.5" HDD(SSD) 4 x SATA data ports |
| Support HDD types | For 2.5" HDD or SSD type For SATA I,II,III HDD or SAS I, II HDD For SATA 6G or SAS 6G HDD Supported HDD height up to 14.5mm |
| Interface | 7pin data connector x 4 |
| Hot swap | YES |
| Power Connector | SATA 15pin x 1 |
| Keylock/anti shock | * With metal key lock * With guiding rail for anti-vibration design |
| Transfer rate | Support Up to SATA III 6G & SAS 6Gbps(SAS-II) |
| HDD Connection | Cable-less HDD connection |
| Material | Aluminum body & carrier & aluminum front bezel |
| Cooling fan | 40 x 40 x20mm x 2 |
| Power LED | Power ON : Blue |
| Fan Failure LED | YES *Fan failure : Red blinking(slow) LED indication |
| Overheating LED | YES *Overheating : Red blinking(fast) LED indication |
| Data cable | w/o cables |
| Product Colors | Black |
| Dimension WxHxD | 146 x 42 x 180mm |
| Weight | 0.91 kgs |
| SPECIFICATIONS | |
|---|---|
| Part No. | 7507-1113 & 7507-1116 & 7507-2117 |
| Form Factor | 1 x 5.25” Bay for 1HDD |
| HDD Form Factory | For SATA I/II/III HDD or SAS I, II HDD |
| Power Connector | SATA 15pin x 1 |
| Hot Swap Support | YES |
| Interface | 7pin data connector |
| Transfer rate | Up to 6.0 Gbps for SATA-III |
| HDD Connection | Cable-less HDD connection |
| Support HDD Height | Up to 25.4mm |
| Plugging cycles | 10000 |
| Indicators | Green for power on, Amber for HDD access With adjustable LED accessing indication ( Enable or Disable ) |
| Color | Black |
7507-1113
7507-1116
7507-2117
| SPECIFICATIONS | |
|---|---|
| Part No. | 7507-1113 |
| Support HDD | 3.5" HDD (SSD) |
| Air Ventilation | 8cm slim fan |
| HDD Mounting type | Screw in case body with plastic tray |
| Security lock | plastic latch |
| Material | Plastic |
| Dimension WxHxD | 146 x 42 x 188mm |
| Weight | 0.4 kgs |
| SPECIFICATIONS | |
|---|---|
| Part No. | 7507-1116 |
| Support HDD | 3.5" or 2.5" HDD(SSD) |
| Air Ventilation | Fan-less design |
| HDD Mounting type | Screw on Tray Anti-Vibration Guiding Rail |
| Security lock | Metal key lock and sliding door |
| Material | Aluminum |
| Dimension WxHxD | 147.4 x 42.2 x 186.5mm |
| Weight | 0.41 kgs |
| SPECIFICATIONS | |
|---|---|
| Part No. | 7507-2117 |
| Support HDD | 3.5“ HDD |
| Air Ventilation | Fan-less design 4cm optional |
| HDD Mounting type | Tray-less Tool free HDD swapping mechanism |
| Security lock | Metal key lock |
| Material | Aluminum |
| Dimension WxHxD | 146 x 42 x 175mm |
| Weight | 0.31 kgs |
