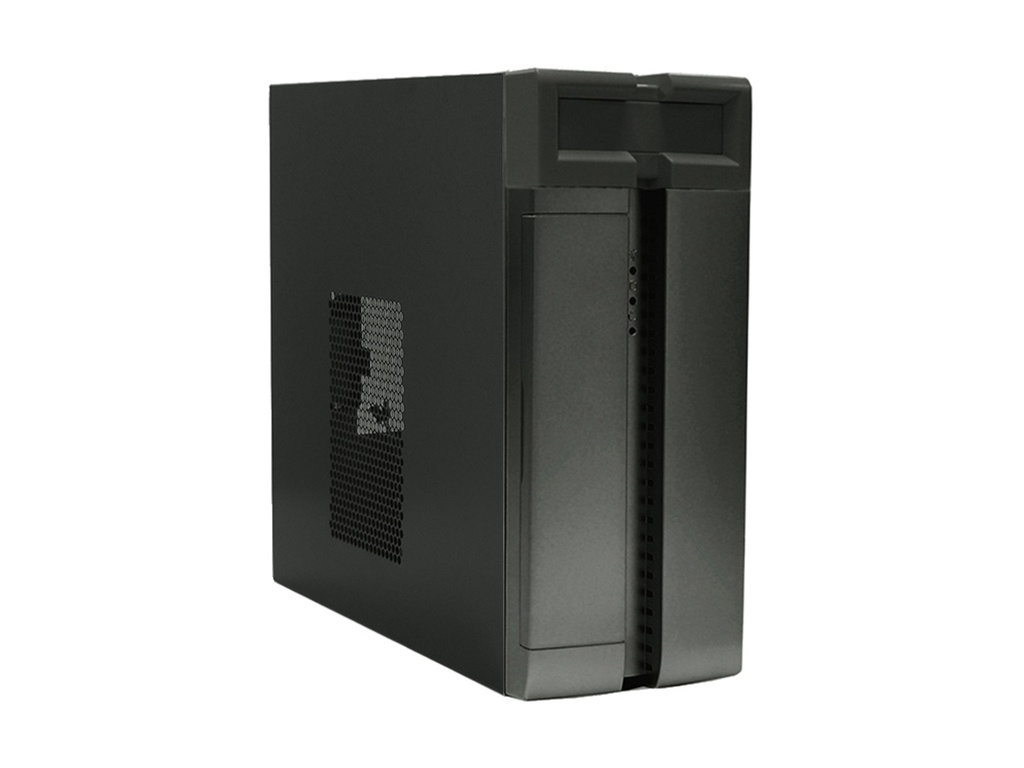

A2 Series 16L SFF Mini

YY-A201 Best for Embedded Application

YY-A201 is a compact micro-ATX pc case with standard rear slots. It's a cost-efficiency small micro-ATX case. The bezel is designed with a snap-in and screw-less type, making it easier to pull in or out for assembly. The front sub bezel comes with door design for protecting the front panel I/O as well as offering a neat appearance for the overall exterior.

Feature

Front access USB 3.1 Gen 1 Type A (up to 5 Gbps) optional
USB 3.0 - referred to as USB 3.1 gen 1 on 2015
Front access USB 2.0 x 2 or USB USB 3.1 Gen 1 x 2 (optional)

Special Design

Relax the FHS inlet spec from 38 °C to 40 °C
The TAC2.0 Guide specifies a 110mmx150mm Vent with an effective open area of 60%
TAC 2.0 does not require a duct or any new Additional system fans

Specifications

SPECIFICATIONS
Model	YY-A201
Case dimension	136mm W x 370mm D x 329mm H ( 5.3"W x 14.5"D x 12.9"H )
Motherboard configuration	Micro ATX
Driver configuration	1 - 5.25" ODD 1 - 3.5" FDD or Card Reader 1 - 3.5" HDD 1 - 3.5"(1") HDD Option
Optional system cooling fans	2 x 6cm fans ( rear-mounted )
Expansion slots and ports	Standard PCI 4 slots
Front panel control	Power switch, Power LED, HDD LED Dual USB (optional)
Materials	Recyclable materials Flame retardant plastic parts and front bezel(HB) Steel chassis Meets the requirements of RoHs & WEEE
Emissions	Designed to meet FCC class B-47 CFR part15/IEC/CISPR 22:1993
Net Weight	4.6kgs / 10.1lbs
Color	Cool Gray, Dark Gray
Power Supply	SFX 12 V3.0 200W~300W
Options	2 x 6cm cooling fans (ball bearing) USB, Intrusion switch, Air Guide, Cleanable filter function
Packing /Shipping	1.2cuft/carton 870pcs/20'container 1800pcs/40' container 2016pcs/40HQ container
