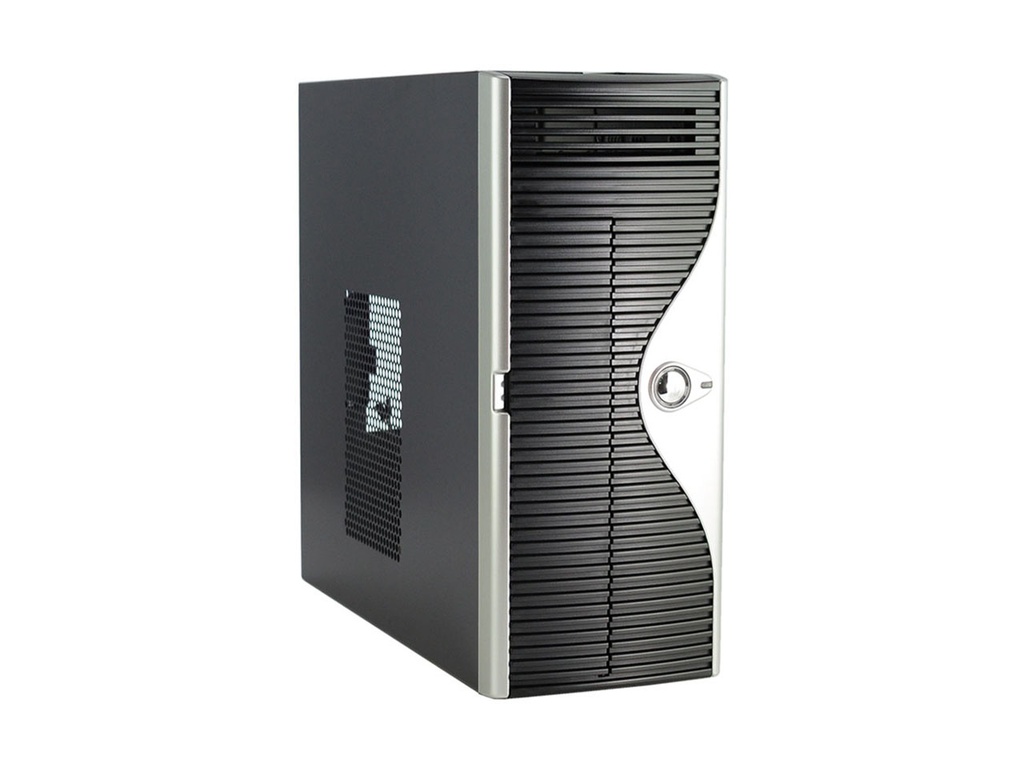

A2 Series 16L SFF Mini

YY-A210 Best for Business Application

YY-A210 is a thermally upgraded small micro-ATX case that meets the TAC 2.0 configuration by making the ventilation space bigger on the side panel. The cold air can flow into the chassis faster to cool down the system. Elegant and consistent, the bezel with a shiny button stands out the whole design with a hidden sub door, offering aesthetic appearance as well as secure access for the front panel I/O. Optimized storage configuration, optional 3.5" HDD additional cage, and 2.5" HDD converter provide advanced expanding solutions for the system based on requirements.

Feature

Front access USB 2.0 x 2 + HD Audio

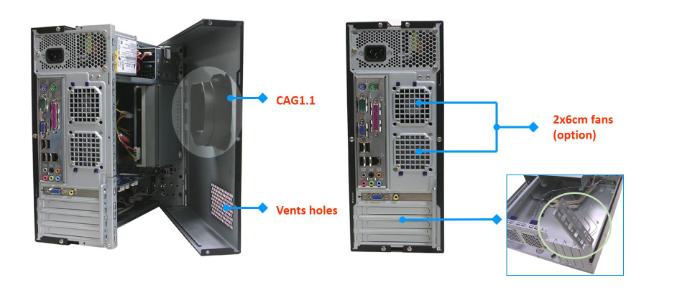

Special Design

Relax the FHS inlet spec from 38 °C to 40 °C
The TAC2.0 Guide specifies a 110mmx150mm Vent with an effective open area of 60%
TAC 2.0 does not require a duct or any new Additional system fans

Specifications

SPECIFICATIONS
Model	YY-A210
Case dimension	136mm W x 370mm D x 329mm H ( 5.3"W x 14.5"D x 12.9"H )
Motherboard configuration	Micro ATX
Driver configuration	1 - 5.25" ODD 1 - 3.5" FDD or Card Reader 1 - 3.5" HDD
Optional system cooling fans	2 x 6cm fans ( rear-mounted )
Expansion slots and ports	Standard PCI 4 slots
Front panel control	Power switch, Power LED, HDD LED Dual USB (optional)
Materials	Recyclable materials Flame retardant plastic parts and front bezel(HB) Steel chassis Meets the requirements of RoHs & WEEE
Emissions	Designed to meet FCC class B-47 CFR part15/IEC/CISPR 22:1993
Net Weight	4.6kgs / 10.1lbs
Color	Standard color : Cool Gray / Black / Silver
Power Supply	SFX 12 V3.0 200W~300W
Options	2 x 6cm cooling fans (ball bearing) USB, Intrusion switch, Air Guide, Cleanable filter function
Packing /Shipping	1.2cuft/carton 870pcs/20'container 1800pcs/40' container 2016pcs/40HQ container
