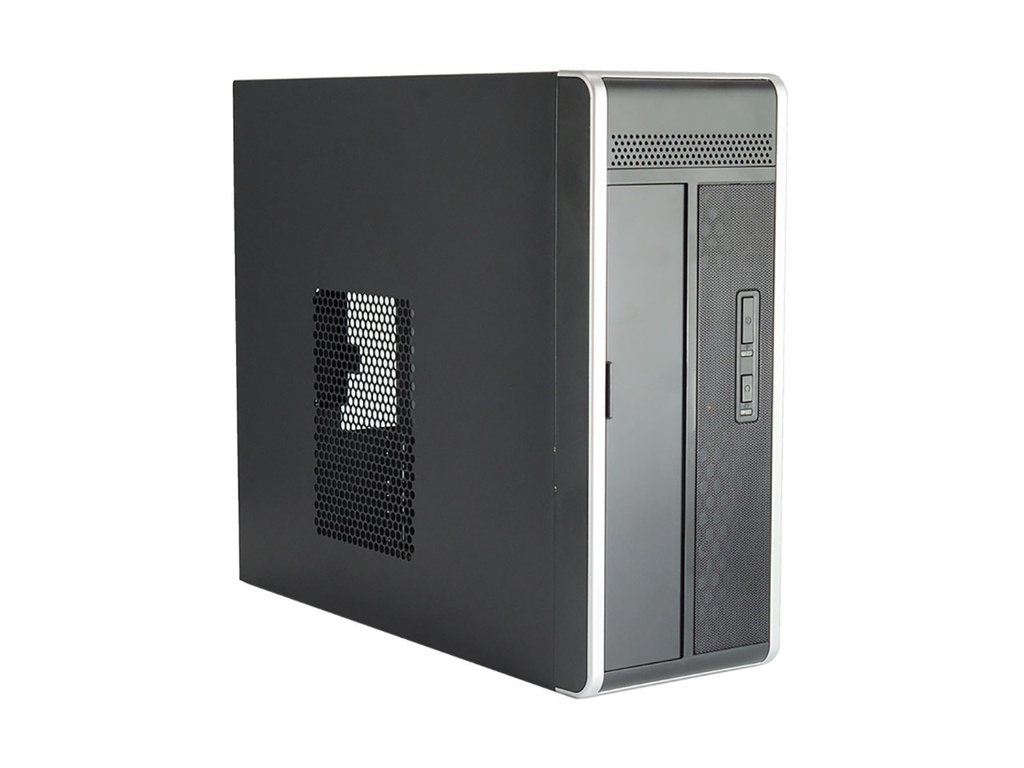

A2 Series 16L SFF Mini

YY-A212 with Clean Front Panel Design
https://www.yycase.com/web/image/product.template/20/image_1920?unique=bcf389d

YY-A212 supports excellent ventilation. Partly mesh panel provides modern styling as well as optimum thermal solutions for intaking cold air to cool down the system. With the USB2.0 or USB 3.0 at the front panel, it is effortless for the users to access without using the one at the rear chassis. It also supports multi-functional card readers, providing versatile accessibility for different devices. It is a perfect small form factor pc case.

    This combination does not exist.

    Feature Special DesignSpecificationsDocument

    Feature

    • Front access USB 2.0 x 2 + HD Audio

    Special Design


    • Relax the FHS inlet spec from 38 °C to 40 °C
    • The TAC2.0 Guide specifies a 110mmx150mm Vent with an effective open area of 60%
    • TAC 2.0 does not require a duct or any new Additional system fans

    Specifications

    SPECIFICATIONS
    ModelYY-A212
    Case dimension136mm W x 370mm D x 329mm H ( 5.3"W x 14.5"D x 12.9"H )
    Motherboard configurationMicro ATX
    Driver configuration1 - 5.25" ODD
    1 - 3.5" FDD or Card Reader
    1 - 3.5" HDD
    Optional system cooling fans2 x 6cm fans ( rear-mounted )
    Expansion slots and portsStandard PCI 4 slots
    Front panel controlPower switch, Power LED, HDD LED
    Dual USB/Audio (optional)
    MaterialsRecyclable materials
    Flame retardant plastic parts and front bezel(HB)
    Steel chassis
    Meets the requirements of RoHs & WEEE
    EmissionsDesigned to meet FCC class B-47 CFR part15/IEC/CISPR 22:1993
    Net Weight4.6kgs / 10.1lbs
    ColorBlack
    Power SupplySFX 12 V3.0 200W~300W
    Packing /Shipping1.2cuft/carton
    870pcs/20'container
    1800pcs/40' container
    2016pcs/40HQ container
