A2 Series 16L SFF Mini

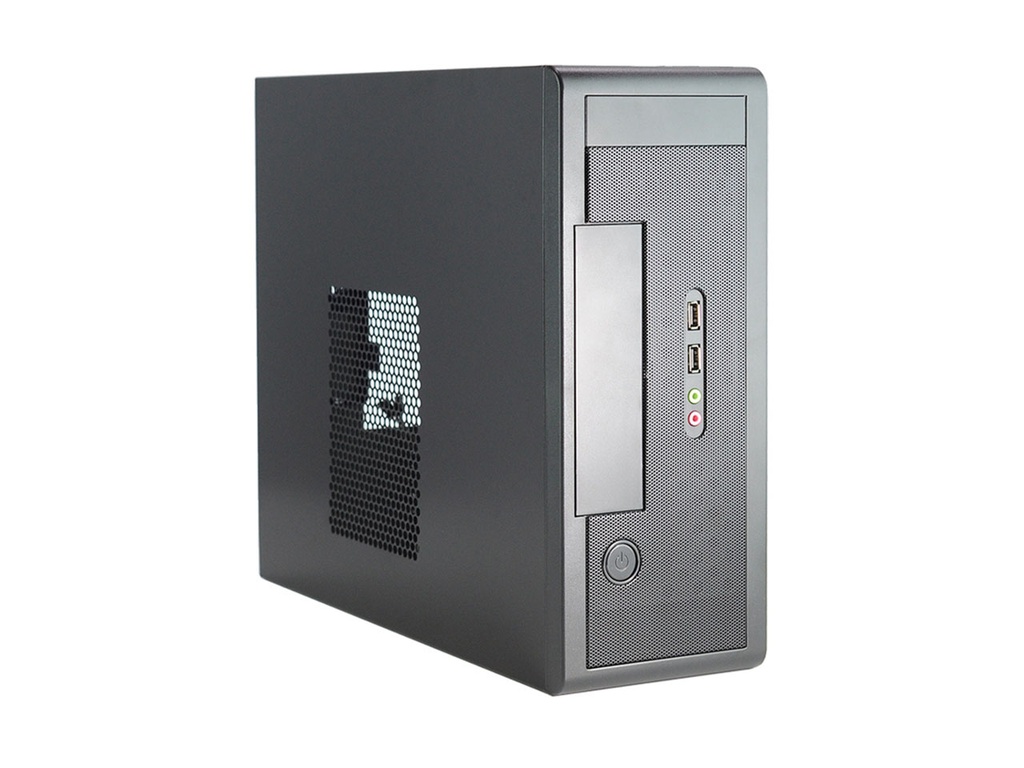

YY-A213 with Mesh Front Panel Design

Designed with a modern mesh panel, YY-A213 offers maximum optimized airflow for cooling down the system in a short time. With the vent holes and two 6 cm fans at the rear, the hot air inside the chassis can dissipate faster to keep the system running smoothly. Moreover, this slim micro-ATX case is designed to load an SFX type of power supply 200-300W to save space for other components. The screw-less design further offers simple assembly solutions for components installation and HDD configuration.

Feature

Front access USB 3.1 Gen 1 Type A (up to 5 Gbps) optional
USB 3.0 - referred to as USB 3.1 gen 1 on 2015
Front access USB 2.0 x 2 + HD Audio or USB 3.0 x 2 + HD Audio

Special Design

Relax the FHS inlet spec from 38 °C to 40 °C
The TAC2.0 Guide specifies a 110mmx150mm Vent with an effective open area of 60%
TAC 2.0 does not require a duct or any new Additional system fans

Specifications

SPECIFICATIONS
Model	YY-A213
Case dimension	136mm W x 370mm D x 329mm H ( 5.3"W x 14.5"D x 12.9"H )
Motherboard configuration	Micro ATX
Driver configuration	1 - 5.25" ODD 1 - 3.5" FDD or Card Reader 1 - 3.5" HDD
Optional system cooling fans	2 x 6cm fans ( rear-mounted )
Expansion slots and ports	Standard PCI 4 slots
Front panel control	Power switch, Power LED, HDD LED Dual USB/Audio (optional)
Materials	Recyclable materials Flame retardant plastic parts and front bezel(HB) Steel chassis
Emissions	Designed to meet FCC class B-47 CFR part15/IEC/CISPR 22:1993
Net Weight	4.6kgs / 10.1lbs
Color	Black or Black with Silver
Power Supply	SFX 12 V3.0 200W~300W
Packing /Shipping	1.2cuft/carton 870pcs/20'container 1800pcs/40' container 2016pcs/40HQ container
