Features & Benefits

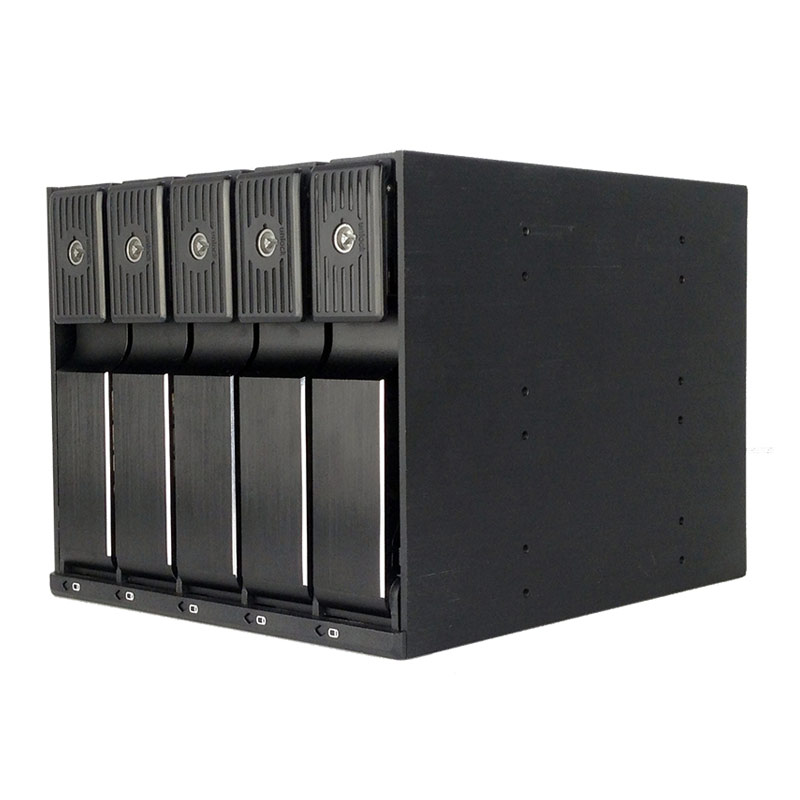

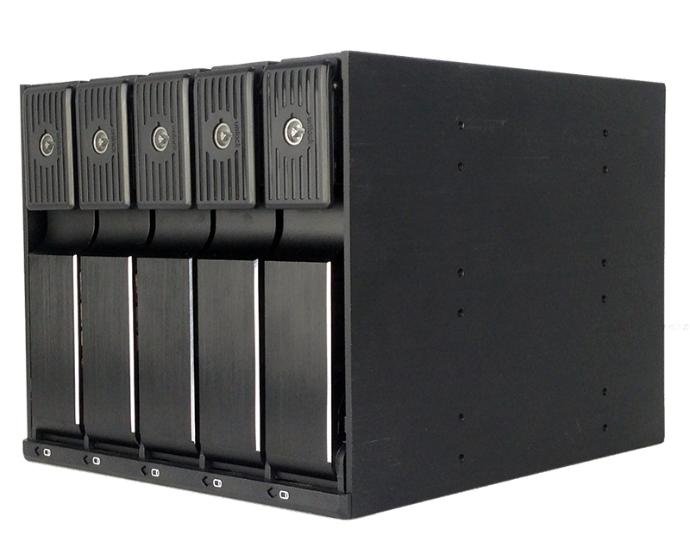

7507-2357 Aluminum structure HDD Backplane module is designed to house up 5 x 3.5" SATA or SAS Hard Drives in 3x5.25" drive bay. Tray-less design make HDD installing easier and its rear-mounted 80mm cooling fan keeps the unit function at its optimal capacity.
- Simple HDD installation without any tool required
- Super fast HDD exchange with the design
- Key lock design to avoid accident removal
LED status :
- Power on (HDD inside) : Green
- HDD access : Orange blinking
- Alarm : Green=normal, Red = Over heat
- Fan : Green=normal, Red = Fan Failure
Specifications
| HDD Backplane Module | 7507-2357 |
|---|---|
| Certifications | CE、FCC、RoHS compliance |
| Color | Body ：Aluminum (Hairlines anodized black) Tray ：Aluminum / ABS (Black) |
| Material | Aluminum for optimized heat dissipation |
| HDD Type | Support 3.5” SATA I/II/III & SAS I, II 6Gps |
| Interfaces | 5 x SATA 7pin (Max. 6Gbps) 2 x 15pin SATA Power Fan Speed control (High / Low) HDD LED on/off Switch |
| Hot Swappable | Depend on System |
| FAN | 80 x 80 x 20 mm fan x 1 |
| Dimension WHD | 146 x 126 x 198 mm |
| Weight | 1.35 Kg |
| Packing Contents | 7507-2357 HDD Backplane Module (hard drives not included) Screws, Key x 2 |
