Features & Benefits

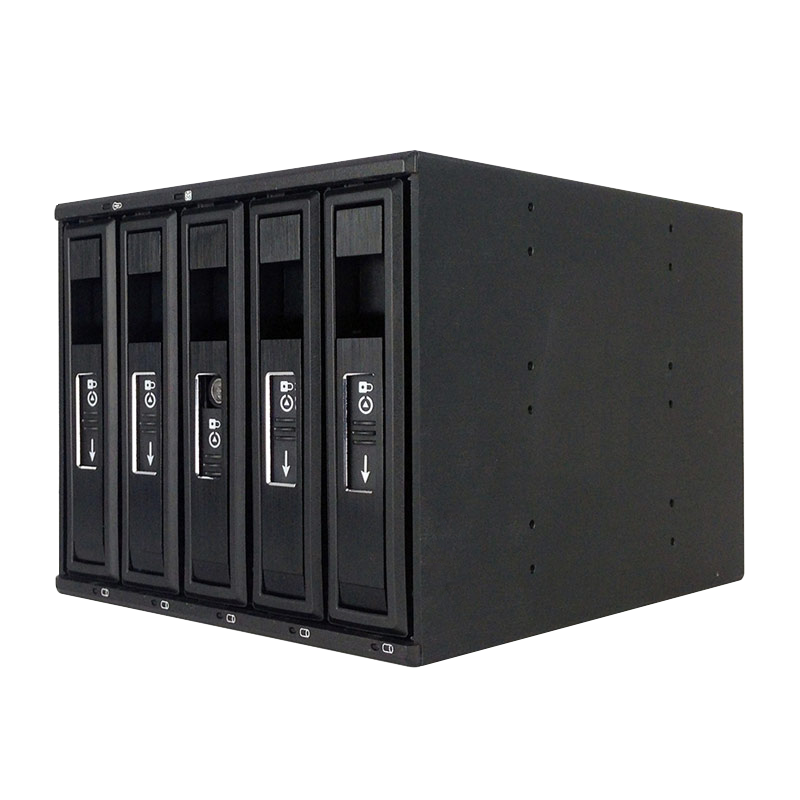

7507-1356 Aluminum structure HDD Backplane module is designed to house up 5 x 3.5" SATA or SAS Hard Drives in 3x5.25" drive bay. Patented spring-rails Tray design make HDD installed without vibration concern and its rear-mounted 80mm cooling fan keeps the unit function at its optimal capacity.
- Double Key lock design to avoid accident removal
- ecure HDD with screws in Aluminum carrier
- nti-vibration guiding rail design
- atented stainless-rails silently connect the carrier and the frame
- ach tray will be touching with 4 resilient points to limit the top-bottom range of the vibration.
LED status :
- Power on (HDD inside) : Green
- HDD access : Orange blinking
- Alarm : Green=normal, Red = Over heat
- Fan : Green=normal, Red = Fan Failure
- 1 x 8cm cooling fan to allow the unit stay cool, and with Fan Speed selection (High, Low)
- LED on/off Switch function
Specifications
| HDD Backplane Module | 7507-1356 |
|---|---|
| Certifications | CE、FCC、RoHS compliance |
| Color | Body ：Aluminum (Hairlines anodized black) Tray ：Aluminum / ABS (Black) |
| Material | Aluminum for optimized heat dissipation |
| HDD Type | Support 3.5” SATA I/II/III & SAS I, II 6Gps |
| Interfaces | 5 x SATA 7pin (Max. 6Gbps) 2 x 15pin SATA Power Fan Speed control (High / Low) HDD LED on/off Switch |
| Hot Swappable | Depend on System |
| FAN | 80 x 80 x 20 mm fan x 1 |
| Dimension WHD | 146 x 126 x 217 mm |
| Weight | 1.81 Kg |
| Packing Contents | 7507-1356 HDD Backplane Module (hard drives not included) Screws, Key x 2 |
