Storage Server Chassis

YY-R2608 is Design for 2U 8Bay Storage
https://www.yycase.com/web/image/product.template/54/image_1920?unique=319cd78

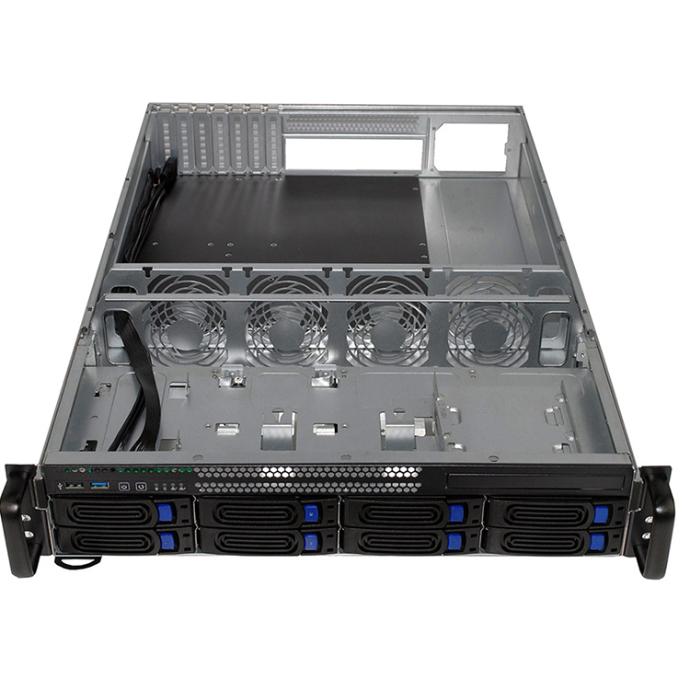

The YY-2608 is a 2U 8bay server case, offering great hardware compatibility. It has 8 HDD bays for storage device. With multiple backplane options, this server case can provide different service according to the environment it was deployed. For different hardware configuration, we also designed different backboard which fits the need, such as the riser card, single or redundant PSU. It is a suitable rackmount nas case and a effective storage server chassis suited for IT specialist to deploy in a broad range of application.

    This combination does not exist.

    Features & BenefitsSpecial DesignOptional KitsSpecifications

    Features & Benefits

    • The most versatile 2U chassis with complete hardware support
    • 6G or 12Gb/s mini-SAS / SATA backplane option
    • Sturdy chassis structure
    • Auto lock top cover for quick access
    • Modular building blocks

    Special Design

    Optional Kits

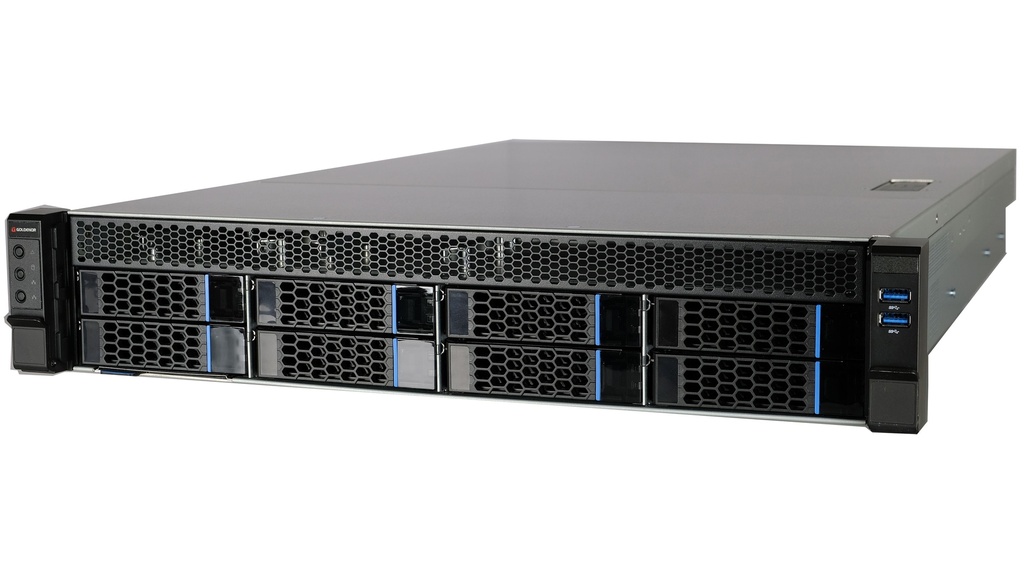

    Lockable front panel for safety purpose

    The lockable front panel provides a fresh look for the 2U rackmount case. It also has two important function. First, it can help protect the storage device, preventing malicious access of the physical device and accidental removal of the hard drives. Second, the honeycomb pattern provides great path for the cooling air. It is a worth considering accessory.

    Specifications

    Model YY-R2608
    Form Factor 2U
    M/B Form Factor ATX, CEB, Extended ATX (12"x13")
    Dimensions (WxHxD) mm 442 x 87 x 660 (25.6"D)
    Drive Bays
    - Slim ODD Bay
    - 2.5"HDD Bay
    - 3.5"HDD Bay
    1
    2
    8
    PSU Form Factor 2U Single or 2U Redundant

    Front Panel IO and Indicators    		 Power on/off switch, System reset switch
    1 x Power Status, 1 x HDD Activity 2 x LAN Activity
    2 x USB2.0 (default) or 2 x USB3.0 (option)
    System Security Intrusion Switch
    Cooling Fans - Middle 3 x 80x80xT38mm
    Expansion Slots 7 x Low Profile PCI or 3 x Full height Riser PCI
    HDD Backplane 6Gb/s 12Gb/s mini-SAS,
    optional SGPIO for 12GB backplane
    Metal Thickness SGCC t1.2mm
    Net Weight 10.8kg
    Gross Weight 13.8kg
    Packing (Single) / Container Loading 55x798x18.5 (2.86cuft)
    Optional Double Carton size/weight 57x80x20cm / (3.22't) Gross Weight +1 kg
