Storage Server Chassis

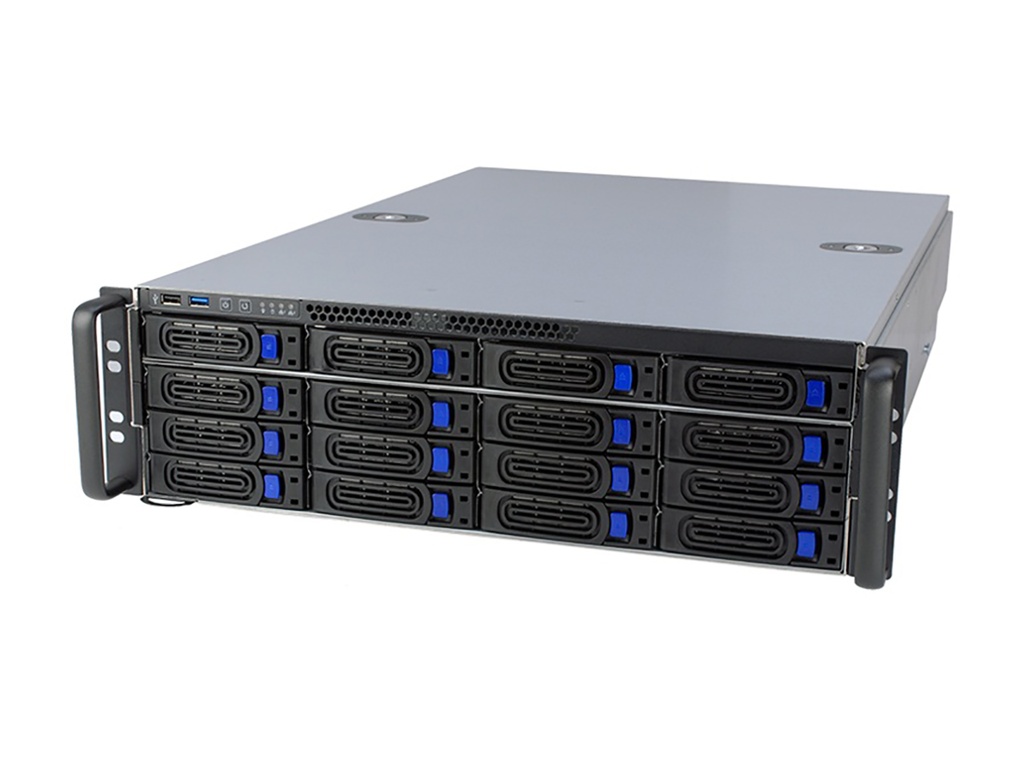

YY-R3616 is Design for 3U 16Bay Storage
https://www.yycase.com/web/image/product.template/56/image_1920?unique=e874d61

The YY-3616 is a 3U 16bay server case, supporting 6Gbs or 12Gbs SAS interface. The frontal 16 bay provide wide space for storage device. With multiple backboard options we designed, the client can freely assemble the system with the hardware they're familiar, no matter traditional ATX, single or redundant PSU and standard PCI or riser PCI. As it is highly flexible, it definitely is one of the best rackmount nas case for IT specialist to deploy.

    This combination does not exist.

    Features & BenefitsSpecial DesignSpecifications

    Features & Benefits

    • Optional PCI Card Retainer for holding different height add-on cards

    Special Design

    Specifications

    Model YY-R3616
    Form Factor 3U
    M/B Form Factor ATX, CEB, Extended ATX (12”x13”)
    Dimensions (WxHxD) mm 442 x 132 x 660 (25.6”D)
    Drive Bays
    - Slim ODD Bay
    - 2.5”HDD Bay
    - 3.5”HDD Bay
    0
    3
    16
    PSU Form Factor 2U Single or 2U Redundant

    Front Panel IO and Indicators    		 Power on/off switch, System reset switch
    1 x Power Status, 1 x HDD Activity 2 x LAN Activity
    2 x USB2.0 (default) or 2 x USB3.0 (option)
    System Security Intrusion Switch
    Cooling Fans
    - Middle
    - Rear Exhaust Out
    4 x 80x80xT38mm
    2 x 60x60xT25mm
    Expansion Slots 7 x Full Height and Full Length
    HDD Backplane 12Gb/s mini-SAS or mini-SAS,
    down compatible with 6Gb/s HDD
    Metal Thickness SGCC 1.2mm
    Net Weight 14.0kg
    Gross Weight 17.2kg
    Packing / Container Loading 55x78x25 (3.79cuft)
