Storage Server Chassis

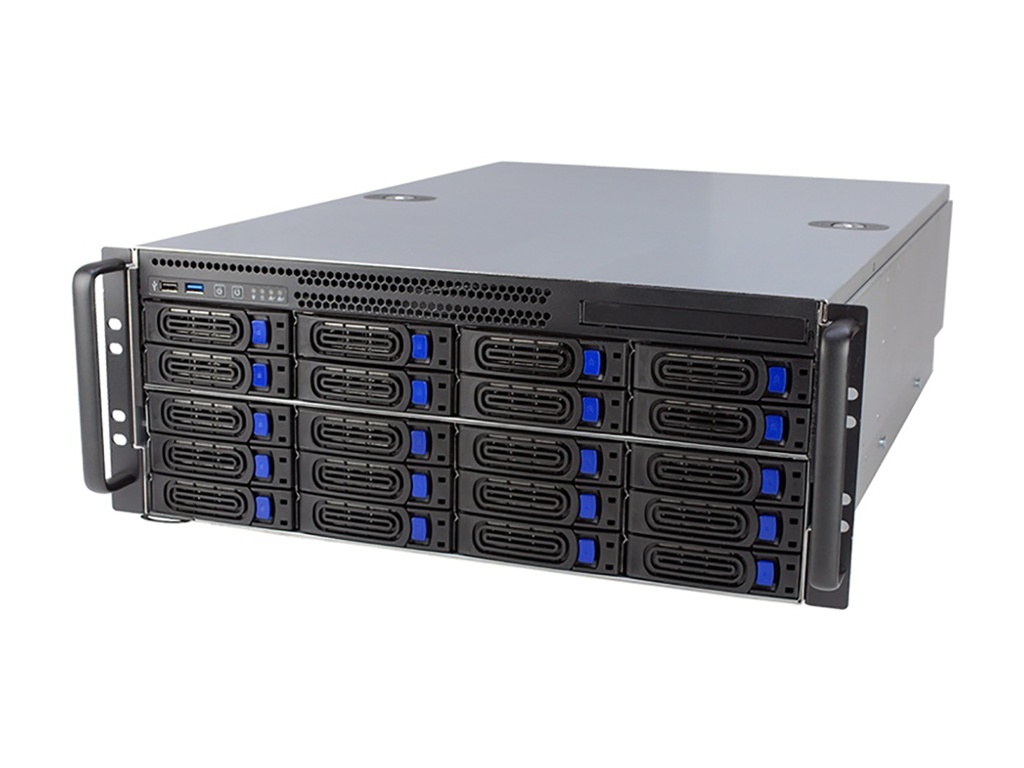

YY-R4620 is Design for 4U 20Bay Storage
https://www.yycase.com/web/image/product.template/57/image_1920?unique=4f2b31f

The YY-4620 is a 4U 20bay storage server case, supporting 6Gbs or 12Gbs SAS interface. In this case, we tried to find a balance between the IPC case and the specialized storage case. Though the 20 HDD bays on the front almost account all the space, we still find a room to put the slim ODD and the SSD for different tasks. The wide backboard choices provide the great flexibility for the clients to build the system without any obstacle. This 4U 20bay storage server case definitely is one of the best rackmount nas case for IT specialist to deploy.

    This combination does not exist.

    Features & BenefitsSpecial DesignSpecifications

    Features & Benefits

    • Optional PCI Card Retainer for holding different height add-on cards

    Special Design

    Specifications

    Model YY-R4620
    Form Factor 4U
    M/B Form Factor ATX, CEB, Extended ATX (12”x13”)
    Dimensions (WxHxD) mm 442 x 176 x 660 (25.6”D)
    Drive Bays
    - Slim ODD Bay
    - 2.5”HDD Bay
    - 3.5”HDD Bay
    1
    2
    20
    PSU Form Factor ATX Single or Mini Redundant

    Front Panel IO and Indicators    		 Power on/off switch, System reset switch
    1 x Power Status, 1 x HDD Activity 2 x LAN Activity
    2 x USB2.0 (default) or 2 x USB3.0 (option)
    System Security Intrusion Switch
    Cooling Fans
    - Middle
    - Rear Exhaust Out
    3 x 120x120xT38mm
    2 x 80x80xT25mm
    Expansion Slots 7 x Full Height and Full Length
    HDD Backplane 12Gb/s mini-SAS or mini-SAS,
    down compatible with 6Gb/s HDD
    Metal Thickness SGCC 1.2mm
    Net Weight 15.5kg
    Gross Weight 19.2kg
    Packing / Container Loading 55x78x30 (4.55cuft)
