39 Series Standard

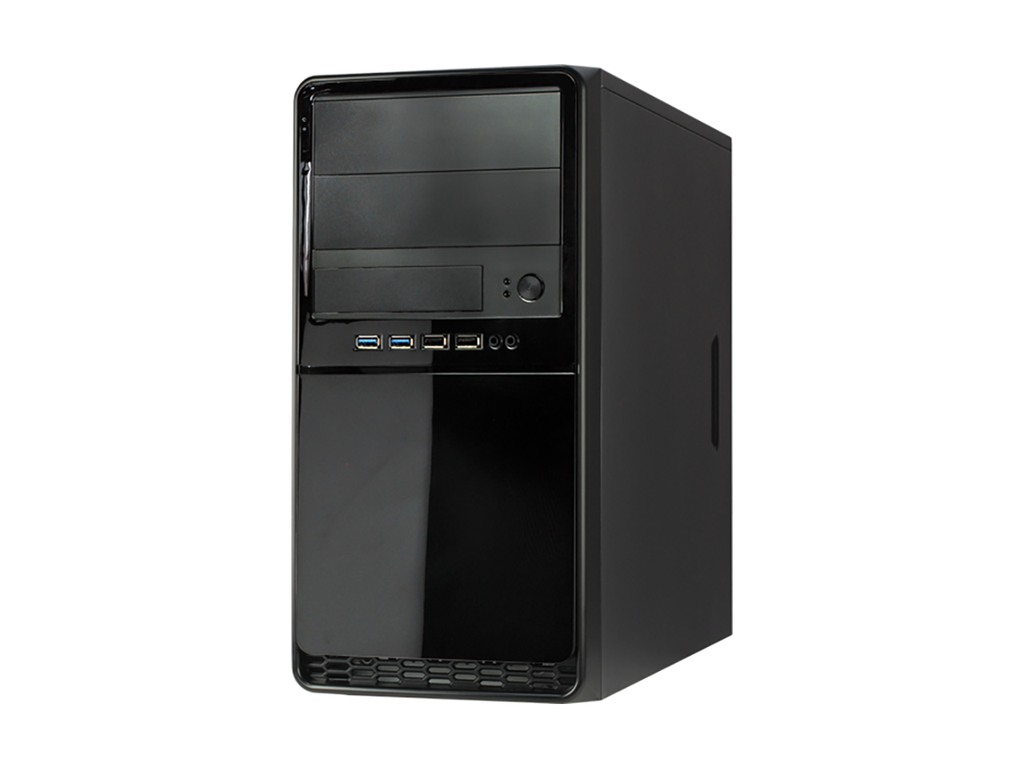

YY-3902 with a two-sided-open design for easy installation.
https://www.yycase.com/web/image/product.template/46/image_1920?unique=24528ff

Meet Intel® thermal requirement and Design Guide TAC2.0

Regarding the interface design, it has a glossy front panel with a series of ventilation holes at the bottom, which enhances the air intake. The cold air can enter the case through the TAC2.0 side panel and achieve the best thermal cooling effect for the system. Though it is small, it can still contain two 3.5" HDD and one 2.5" SSD. For the front panel I/O, YY-3902 contains up to four USB ports, and an optional upgraded solution for USB 3.0 is offered for further expandability. It is a balance of durability and expandability, perfectly suitable for business applications.

    This combination does not exist.

    SpecificationsDocument

    Specifications

    Standard Specifications
    Module YY-3902
    Case dimension 180mm W x 390mm D x 360mm H
    Motherboard configuration microATX, miniITX
    Drive configuration 2 - 5.25" ODD bay
    1 - 3.5" FDD bay
    2 - 3.5" HDD bay
    1 - 2.5" HDD bay
    Optional system cooling fans 1*8~12cm Fan for rear-mounted
    1*8~12cm for front-mounted
    Expansion slots and ports Standard PCI 4 slots
    Front panel control Power switch, reset switch, Power LED, HDD LED
    USB 2.0 ( USB 3.1 gen 1 Option ) /Audio
    / Multi-function Card reader (Optional)
    Materials Recyclable, RoHS compliant
    ABS, t0.5 SGCC
    Emissions Designed to meet FCC class
    Color Black
    Power Supply ATX12V 300W-550W
    Options Cooling fan, USB ( USB 3.0 Option ) /Audio, Multi-function Card reader
    Packing /Shipping 700pcs/20'container
    1400pcs/40' container
    1600pcs/40HQ container
    Hypertec CIARA Specifications
    Module YY-3902-C
    Case dimension 180mm W x 390mm D x 360mm H
    Motherboard configuration microATX, miniITX
    Drive configuration 2 - 5.25" ODD bay
    1 - 3.5" FDD bay
    2 - 3.5" HDD bay
    1 - 2.5" HDD bay
    Optional system cooling fans 1*8~12cm Fan for rear-mounted
    1*8~12cm for front-mounted
    Expansion slots and ports Standard PCI 4 slots
    Front panel control Power switch, reset switch, Power LED, HDD LED
    USB 2.0 ( USB 3.1 gen 1 Option ) /Audio
    / Multi-function Card reader (Optional)
    Materials Recyclable, RoHS compliant
    35% PCR ABS, t0.5 SGCC
    Emissions Designed to meet FCC class
    Color Black
    Power Supply ATX12V 300W-550W
    Options Cooling fan, USB ( USB 3.0 Option ) /Audio, Multi-function Card reader
    Packing /Shipping 700pcs/20'container
    1400pcs/40' container
    1600pcs/40HQ container

    Document

    Catalog
    Manual
    Spec_YY-3902-C
