3A Series Entry
YY-3A21 Best for Office Suite System

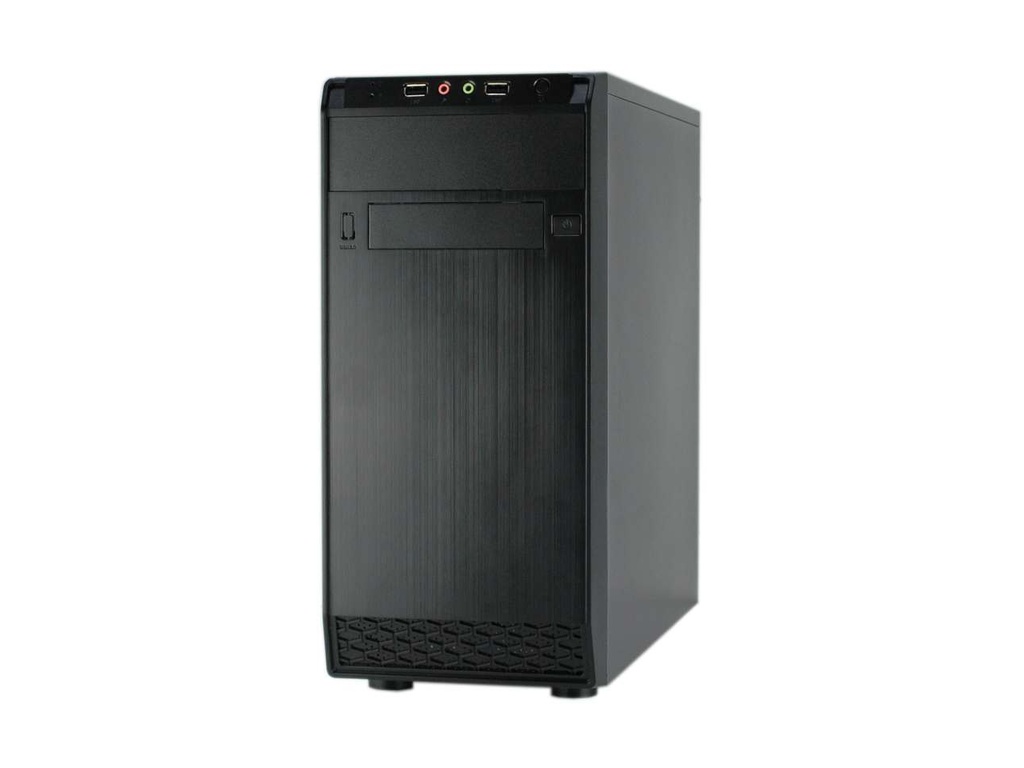

YY-3A21 is a both-side-opened mini-tower case designed with easy installation and cable routing.
The stylish openings at the bottom of the front panel offer a highly efficient air tunnel, guiding the cold air through the chassis smoothly. The optional 8cm and 12cm fans at the rear and front further provide excellent ventilation for the hefty load system. Furthermore, the front panel I/O is specially set up on the top of the chassis, making it easier to access when installing on the floor.
Specifications
| Module | YY-3A21 |
|---|---|
| Case dimension (structure) | 165 W x 350 D x 355 H (mm) |
| Case Dimension (with bezel) | 165 W x 384 D x 355 H (mm) |
| Motherboard configuration | microATX, mini ITX |
| Drive configuration | 1 - 5.25" ODD bay 1 - 3.5” Exposed bay 2 - 3.5” HDD bay (or 2.5”) 3 - 2.5” HDD bay |
| Optional system cooling fan | 12cm Fan (front-mounted) 12cm Fan (side-mounted) 8/9cm Fan (rear-mounted) |
| Expansion slots | Standard PCI 4 Slots |
| Front panel control | Power switch, reset switch Power LED/HDD LED USB1.1 / Audio (USB2.0/3.0 option) Multi-Card Reader (option) |
| Materials Default: Option: |
Recyclable, RoHS compliant ABS front panel t0.35mm SGCC Chassis + t0.4mm Black Covers t0.4mm Fully Black Covers |
| Emissions | Designed to meet FCC class |
| Color | Black |
| Power Supply | ATX12V 300W~550W PFC, 80+, Bronze, Silver, Gold |
| Packing Infomation | 20’Container: 800pcs 40 Container: 1600pcs 40’HQ Container: 1950pcs CKD shipment 40’HQ container:7500pcs |
