3A Series Entry
YY-3A22 Best for Office Application

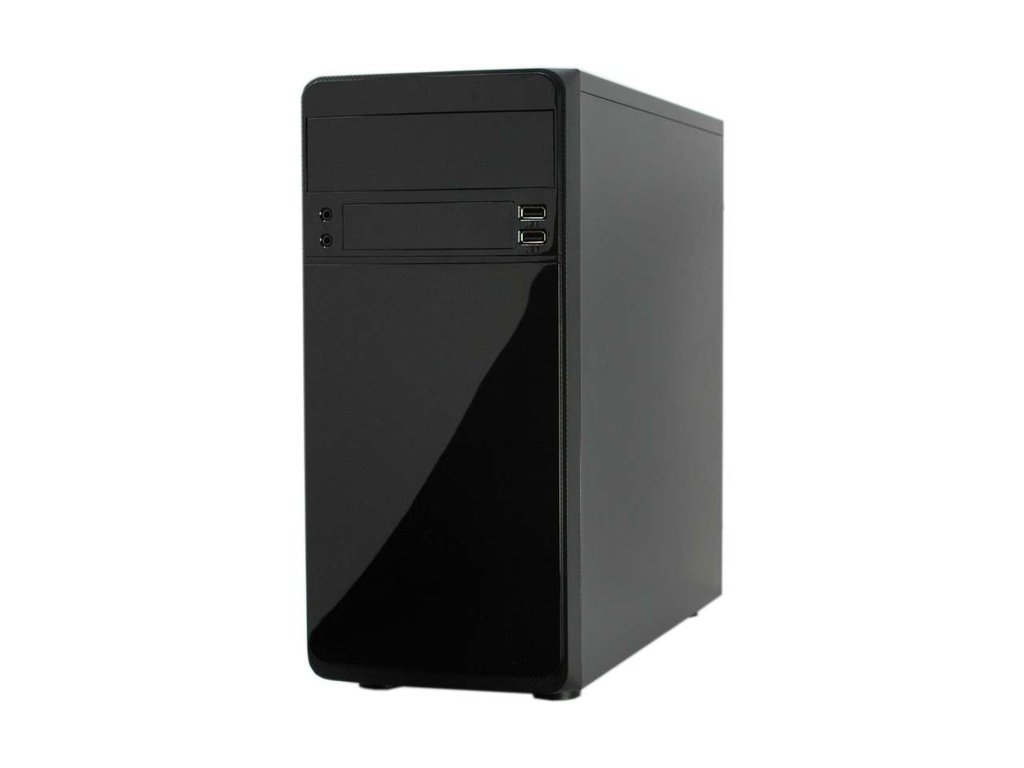

YY-3A22 is a mini-tower pc case with glossy piano-black bezel for office and home use.
It is equipped with a 5.25" ODD slot and an exposed 3.5" HDD slot, which provides flexible storage configurations. Moreover, it allows two 3.5" HDD or three 2.5" SSD for drive bay expansion, fully enhance the system performance based on different applications. Although it is small, it offers a complete platform for building general-purpose systems.
Specifications
| Module | YY-3A22 |
|---|---|
| Case dimension (structure) | 165 W x 350 D x 355 H (mm) |
| Case Dimension (with bezel) | 165 W x 384 D x 355 H (mm) |
| Motherboard configuration | microATX, mini ITX |
| Drive configuration | 1 - 5.25" ODD bay 1 - 3.5” Exposed bay 2 - 3.5” HDD bay (or 2.5”) 3 - 2.5” HDD bay |
| Optional system cooling fan | 12cm Fan (front-mounted) 12cm Fan (side-mounted) 8/9cm Fan (rear-mounted) |
| Expansion slots | Standard PCI 4 Slots |
| Front panel control | Power switch, reset switch Power LED/HDD LED USB1.1 / Audio (USB2.0/3.0 option) Multi-Card Reader (option) |
| Materials Default: Option: |
Recyclable, RoHS compliant ABS front panel t0.35mm SGCC Chassis + t0.4mm Black Covers t0.4mm Fully Black Covers |
| Emissions | Designed to meet FCC class |
| Color | Black |
| Power Supply | ATX12V 300W~550W PFC, 80+, Bronze, Silver, Gold |
| Packing Infomation | 20’Container: 800pcs 40 Container: 1600pcs 40’HQ Container: 1950pcs CKD shipment 40’HQ container:7500pcs |
