3A Series Entry

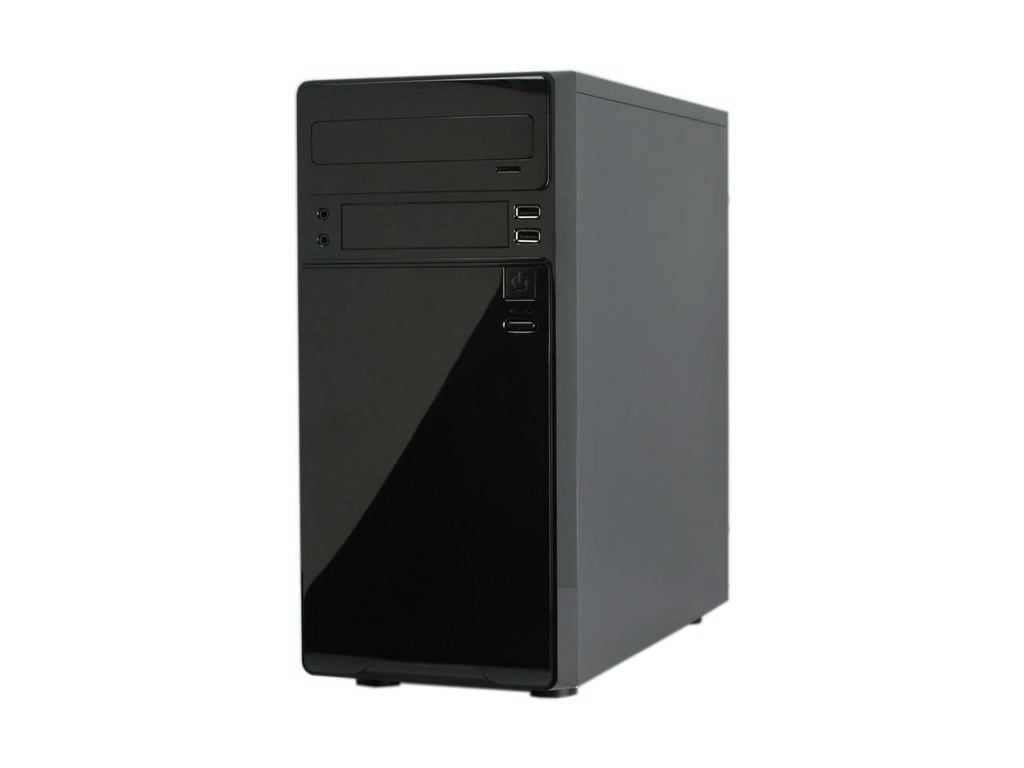

YY-3A23 Best for Business Application
YY-3A23 is a micro-ATX case with a robust structure that provides an excellent capacity for extensive load systems.
In respect of the safety concerns, the chassis contains a standard bracket for the padlock, offering a primary security system. It allows maximum GPU card length up to 280mm. Two 3.5" HDD ports and three 2.5" HDD mount sites are preserved for further expandability and upgrade. Refined and friendly designed, the plain front panel provides the essential I/O layout for most applications. Overall, YY-3A23 is practical as well as an economical solution for budgeted PC systems.
Specifications
| Module | YY-3A23 |
|---|---|
| Case dimension (structure) | 165 W x 350 D x 355 H (mm) |
| Case Dimension (with bezel) | 165 W x 384 D x 355 H (mm) |
| Motherboard configuration | microATX, mini ITX |
| Drive configuration | 1 - 5.25" ODD bay 1 - 3.5” Exposed bay 2 - 3.5” HDD bay (or 2.5”) 3 - 2.5” HDD bay |
| Optional system cooling fan | 12cm Fan (front-mounted) 12cm Fan (side-mounted) 8/9cm Fan (rear-mounted) |
| Expansion slots | Standard PCI 4 Slots |
| Front panel control | Power switch, reset switch Power LED/HDD LED USB1.1 / Audio (USB2.0/3.0 option) Multi-Card Reader (option) |
| Materials Default: Option: |
Recyclable, RoHS compliant ABS front panel t0.35mm SGCC Chassis + t0.4mm Black Covers t0.4mm Fully Black Covers |
| Emissions | Designed to meet FCC class |
| Color | Black |
| Power Supply | ATX12V 300W~550W PFC, 80+, Bronze, Silver, Gold |
| Packing Infomation | 20’Container: 800pcs 40 Container: 1600pcs 40’HQ Container: 1950pcs CKD shipment 40’HQ container:7500pcs |
