77 Series 8L Compact

YY-7701 with Great Cooling Solution

Overview

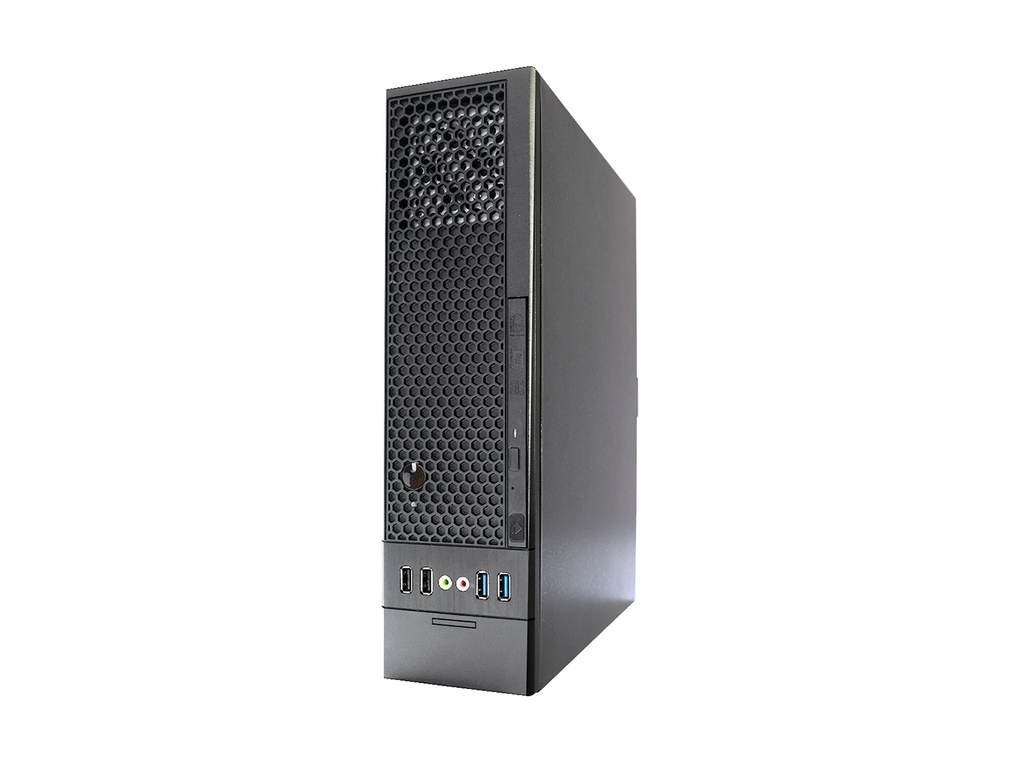

YY-7701 is an 8L slim micro-ATX case. It can contain a standard micro ATX motherboard with standard TFX PSU while allowing a 3.5" HDD, a 2.5" SSD, and a slim ODD for standard installation.

The honeycomb structure on the front panel provides an excellent disguise for the ventilation holes. To enhance the cooling, we offer solutions such as the front cooling fan and air partition by requests. It is a small but powerful slim pc case perfect for offices or businesses.

Specifications

Model	YY-7701
Case Dimension (structure) Case Dimension (with bezel)	325 W x 263 D x 90 H mm(7.69L) 325 W x 273 D x 90 H mm(7.99L)
Motherboard configuration	Standard Micro ATX 9.6”x9.6”, mini ITX
Drive configuration	Cage A Slim ODD (T9.5mm, screw-less) 1 x 3.5” HDD (screw-less) or 1 x 2.5” HDD (screw) 1 x 2.5” HDD (screw-less) + 1 x 2.5” HDD (screw)
CPU Clearance Zone	Cage A: 41mm
Expansion slots and ports	Tool-less 4 low profile PCI slot
Front panel control	Power switch, Power LED, HDD LED USB2.0 / Audio (USB3.0 option) /Type C SD Card Reader (option)
Materials	Recyclable materials; RoHS compliant ABS, SGCC t0.6 Sheet Metal
Emissions	Designed to meet FCC class
Color	Black
Power Supply (option)	TFX
Optional Kits	Internal speaker with AMP board Chassis Intrusion Switch 60x60x10mm Fan (front-mounted)
