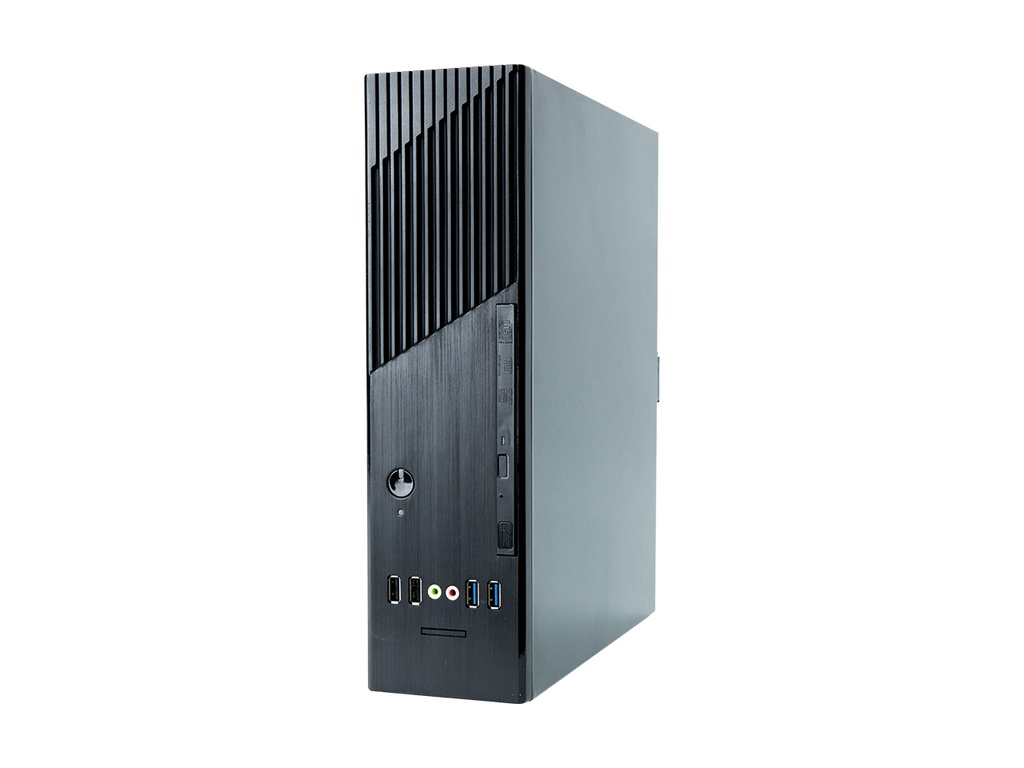

77 Series 8L Compact

YY-7702 Best for Business Application

Overview
Elegant and compact, YY-7702 is an 8L small form factor pc case. It is tiny but capable of containing essential devices, including a set of ODD, HDD, and SSD.
The modern front panel with future-proof FPIO configuration increases its compatibility. With the complete safety solution support, it can be widely applied in various scenarios, especially for business and commercial purposes. It is undoubted a sturdy pc case you don't want to miss.

Specifications

Model	YY-7702
Case Dimension (structure) Case Dimension (with bezel)	325 W x 263 D x 90 H mm(7.69L) 325 W x 273 D x 90 H mm(7.99L)
Motherboard configuration	Standard Micro ATX 9.6”x9.6”, mini ITX
Drive configuration	Cage A Slim ODD (T9.5mm, screw-less) 1 x 3.5” HDD (screw-less) or 1 x 2.5” HDD (screw) 1 x 2.5” HDD (screw-less) + 1 x 2.5” HDD (screw)
CPU Clearance Zone	Cage A: 41mm
Expansion slots and ports	Tool-less 4 low profile PCI slot
Front panel control	Power switch, Power LED, HDD LED USB2.0 / Audio (USB3.0 option) /Type C SD Card Reader (option)
Materials	Recyclable materials; RoHS compliant ABS, SGCC t0.6 Sheet Metal
Emissions	Designed to meet FCC class
Color	Black
Power Supply (option)	TFX
Optional Kits	Internal speaker with AMP board Chassis Intrusion Switch 60x60x10mm Fan (front-mounted)
