Feature
Attractive Aesthetic Design
This new front panel offers the maximum air flow for the hardware with extreme performance, such as CPU and gaming card. The metal mesh grid helps filtering the dust and allows the colorful lighting glows without interference at the same time. It is amazing to see the fan light glowing behind the dark grid, as if the fireworks in the night sky.
Optimized Cooling System
As it is a standard ATX full tower pc case, you can feel free to setup 360 mm radiator and water cooling kits for more advance cooling performance. With the large breathing hole, it creates effective and systematic internal airflow, directly cooling down the system.
Flexible Storage Configurations
The optional extra HDD racks provides another possibility for the case to become a mini server. Furthermore, the preserved riser seat offers additional installation option for stylish users to build up their own unique gaming case. This is an artistic and versatile pc case, suitable for both commercial or consumer.

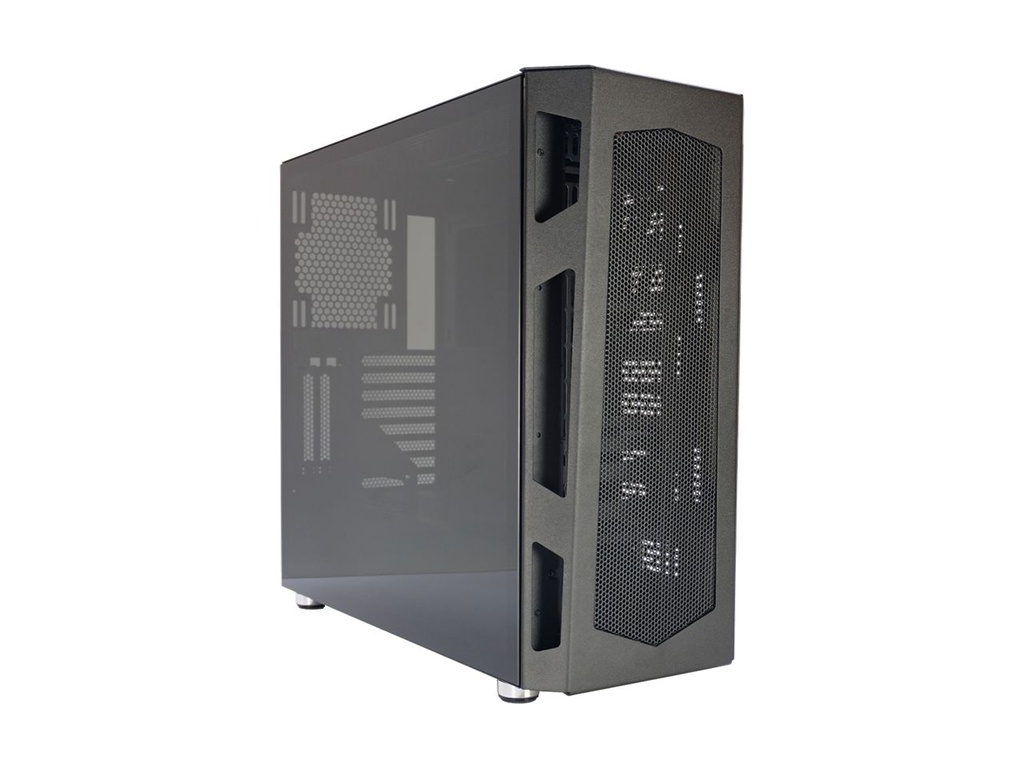

A modern gaming full ATX case with powerful workstation performance, including optimized cooling system, outstanding RGB fan effect and flexible storage options.
- Unique triangular pattern design
- Maximum storage device support ( 8 x 3.5" / 10 x 2.5" HDD or SSD )
- Vertical/horizonal graphic card mounting site
- PSU Post-installation design
- Durable full metal front panel
- Great air flow design
- Ultimate cooling
- Full compatibility with cooler kits
Special Design
Large Capacity
This is a big mansion for your favorite gaming components, which you can easily install cooling kits and powerful graphic card inside without any limitation.
Show Off Your Case
The optional vertical graphic card mount and the PSU window provide a stage to light up your case.
Enjoy your visual party now!
High Expansibility
Preserved multiple HDD mounting sites ensure the storage ability of the system. With additional HDD rack, it can contain up to eight 3.5" HDD, so you can turn your system into a server!

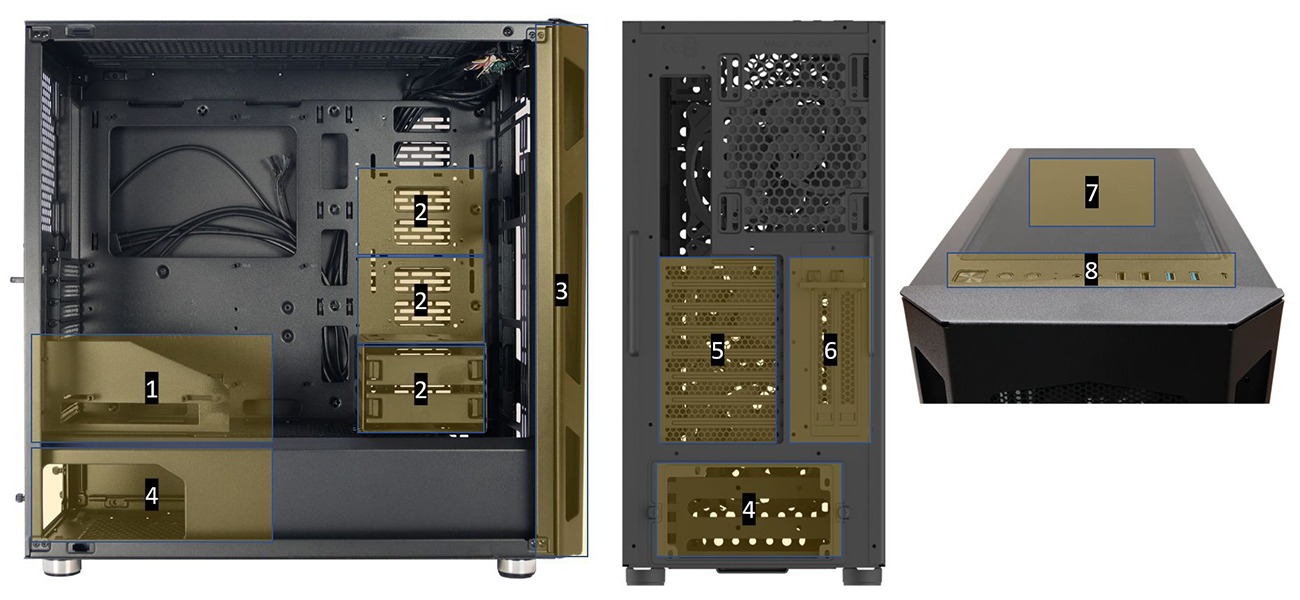

- ● 2.5" SSD Bay
- ● 3.5" HDD Bay (or 2.5" SSD)
- ● Preserved Rack for 3.5" HDD (or 2.5" SSD)
Advanced Interface
Following the new trend of the I/O interface, double built-in USB 3.0 and optional Type C ports are installed. The handy magnetic filter balances the clearance and dustproof function.
- Riser Seat
- Preserved Rack for 3.5" HDD (or 2.5" SSD)
- Stylish Side Vent Holes
- Slide-in PSU mount design
- Expansion Slot * 8
- GPU Rising Mounting Site
- Handy Magnetic Dust Filter
- Advanced Interface
Specifications
| Model | YY-7GA1 / YY-7GA2 / YY-7GA3 |
|---|---|
| Case Type | Full Tower |
| Dimension (mm) | 480(H) x 232(W) x474(D) |
| Side Panel | Steel |
| Color | Black |
| Material | SPCC 0.7mm; black coated |
| Drive bay | 4 x 3.5" + 2 x 2.5" (up to 8 x 3.5" / 10 x 2.5" optional) |
| Expansion slots | 7 Slots |
| Motherboard | SSI EEB / SSI CEB / ATX /micro ATX / mini-ITX MB |
| Fan Support | Front : 120mm x 3/ 140mm x 3 / 200mm x 2 Top : 120mm x 3 /140mm x 2 /200mm x 2 Rear : 120/140mm x 1 |
| Radiator Support | Front : 360mm Top : 360mm Rear 140mm |
| Clearance | CPU Height : 180mm VGA Length : 456mm PSU Length : 225mm |
| Packing | MOQ500 pcs, Styrofoam pack：40HQ /560 pcs, EPE pack：40HQ/480 pcs |
