Feature

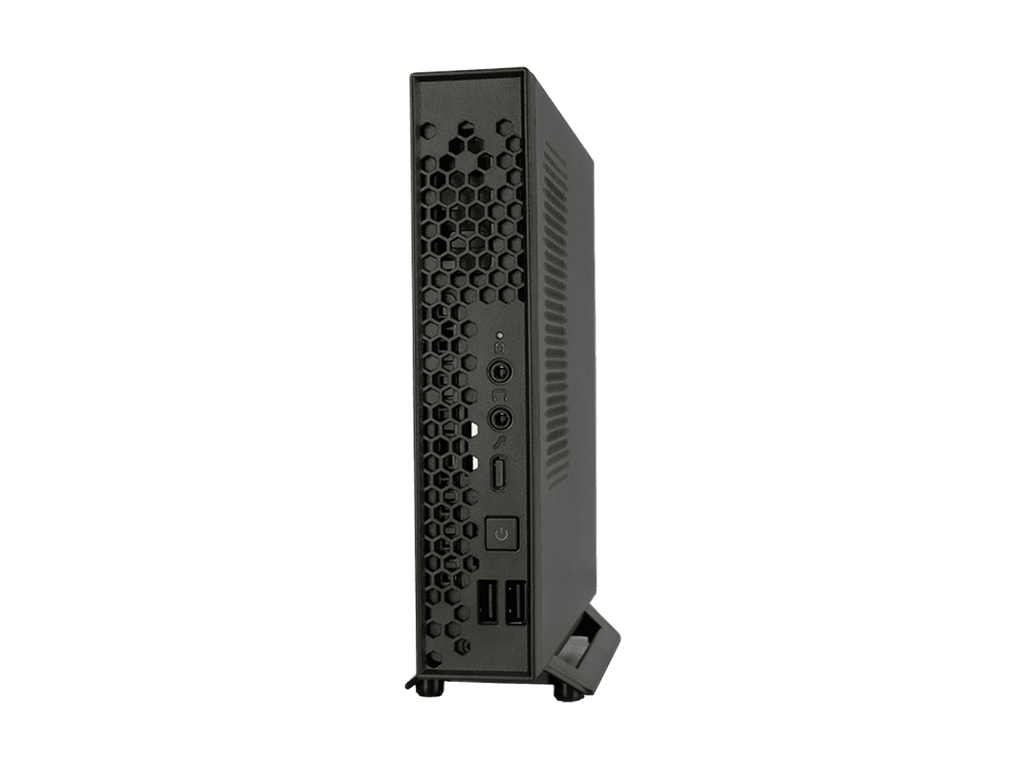

Though the C10 chassis is only 1L volume, it doesn't sacrifice any feature! It nicely provides essential room for a set of the thin Mini ITX motherboard and one 2.5" SSD/HDD to allow the system to work. Benefit from the openings on the top lid and the porous front panel design, the cooling air is rich enough to cool the system. For better cooling effect, cooler options are prepared. You can choose between the traditional cooler and the blower type cooler to have better cooling effect.
- Compact size with 1 liters
- Standard Components - supports Thin ITX motherboards with compact, fan-less layout
- Space for 1 2.5”HDD/SDD, maximum CPU cooler high to 10mm
- Preserved installation site for build-in speaker
- Hidden vents behind the front panel, meet CE/EMI standard, meet TAC2.0 thermal advantage
Special Design
To meet various application, several useful features were planed in the first place. These features include the full function FPIO, antitheft accessories support and the antenna. For different requirement, we preserved the support for different USB port configuration from USB 2.0, USB3.0 to Type C. Clients can freely choose suitable FPIO configuration for their project. To solve the stolen issue, we leave the slot hole for the Kensington lock. We also design a special SSD rack to support the intrusion switch. It can effectively reduce the rick of stolen. We also have the antenna solution, so clients can use it to enhance the system's ability to catch the Wifi signal.
Cooler Options
Useful cooler options are available to choose to meet different application. The standard low profile cooler is suitable for power-saving 35-45W TDP CPU. For higher TDP CPU, the blower cooler can help drain the heat out efficiently.
35-45W TDP CPU:
Low profile cooler
65W TDP CPU:
Blower cooler
Other Options
If you'll need the intrusion switch to help protect the system, please choose the special long 2.5" SSD bracket to help fix the switch. For some application highly relies on the WIFI connection, the antenna set can be considered.
External Antenna
(On customized bracket of MB)
Long 2.5" SSD Bracket with intrusion switch
Mounting Options
As the size is small, it is intuitive to mount the C10 case after the equipment. A set of VESA mount bracket is definitely the key component you're looking for.
Support various mounting methods with optional plastic stand and rubber foot stand
Specifications
| Model | YY-C103 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimension WxHxD | 37 x 183 x 179 mm | ||||||||||||
| M/B Form Factor | THIN-ITX M/B | ||||||||||||
| Max. CPU Cooler Height | 10mm | ||||||||||||
| HDD Bay | 1 x 2.5" HDD/SDD bay | ||||||||||||
| FPIO | USB2.0x2+Audio Ports (USB3.1 Gen1/Type C optional) | ||||||||||||
| Material | SGCC sheet metal T0.6mm | ||||||||||||
| Power Supply (optional) | 12V or 19V DC Adapter 60/65/90/120W | ||||||||||||
| Color | Black | ||||||||||||
| Packing Carton Size | 8.4x29.2x22.5cm | ||||||||||||
| MOQ | 500 pcs | ||||||||||||
| Packing information |
|
