C20 Series 2L Mini

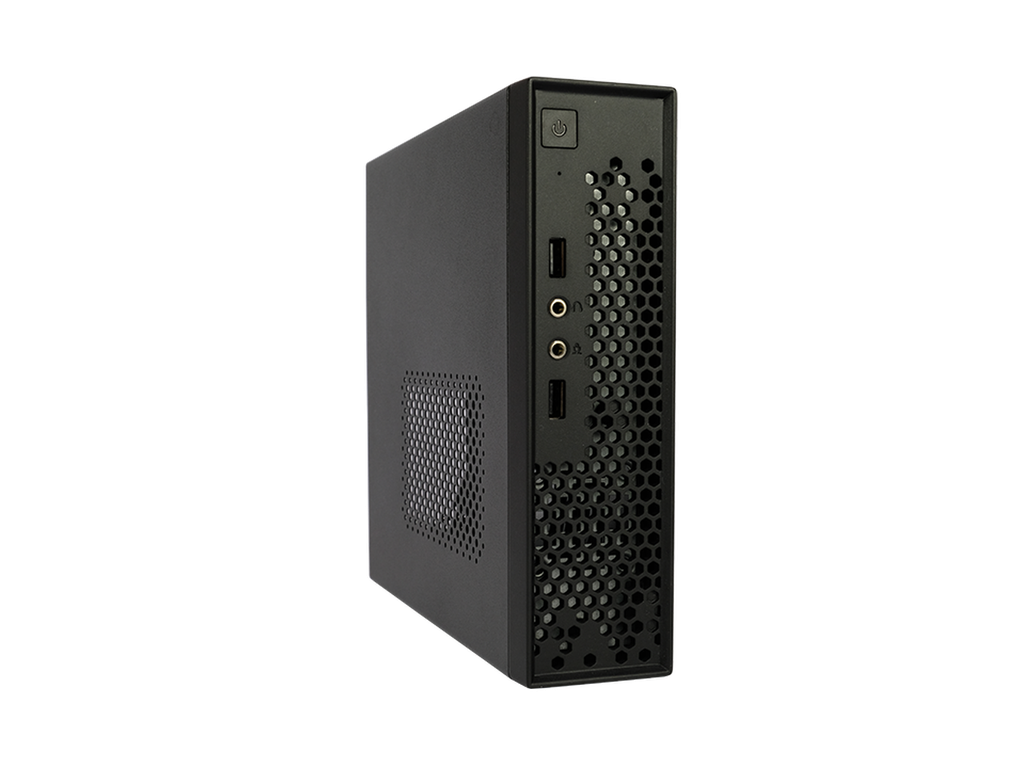

YY-C203 with Great Cooling Design
https://www.yycase.com/web/image/product.template/53/image_1920?unique=7503d73

The C203 is the slim mini itx case with best compatibility. It has the iconic series design- the porous honeycomb front panel, which greatly enhances the air flow into the chassis.
To squeeze the internal space for the essential components, it uses the external power supply. In the wider internal space compared to the 1L case, the C203 has more flexibility on the hardware configuration, including 3 types of HDD layout and a bump mesh cover for the higher CPU cooler. The C203 is versatile and useful for any business and office application.

    This combination does not exist.

    FeatureSpecial DesignOptionsSpecifications

    Feature

    • Various top cover with Kensington lock support.
    • Standard Components - supports Mini-ITX motherboards and DC-ATX PSU
    • Space for 1 2.5" HDD, maximum CPU cooler high to 25mm
    • Optional stylish mesh cover for 2.5" HDD/SSD(Iso type)
    • Meet CE/EMI standard, meet TAC2.0 thermal advantage
    • Rigid structure for thermal and EMI considerations
    • Easy space for system assembly and cable routing

    Special Design

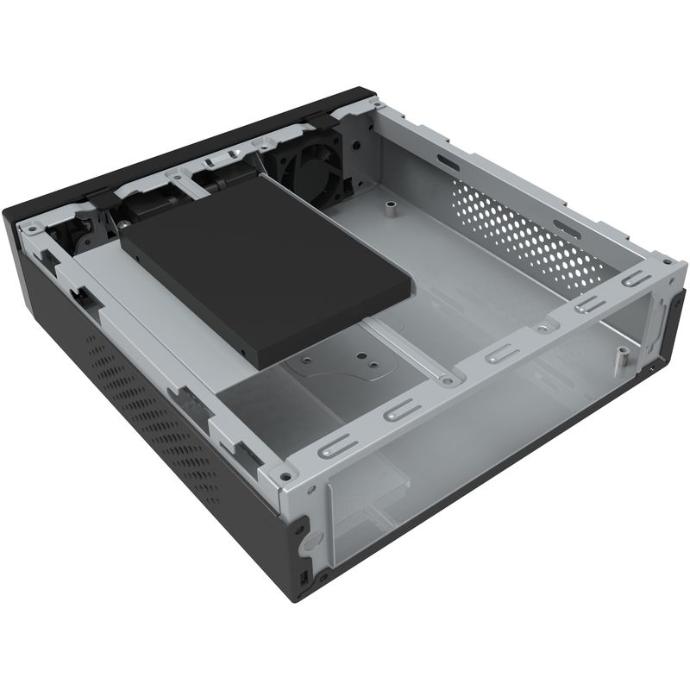

    Multiple HDD installation layout

    Iso type

    Side type

    Corner type

    To adapt the variant CPU layout of mini ITX motherboards, the C20 series implement 3 most common HDD lay out to avoid the interference between CPU and HDD.

    Options

    Optional plastic stand and VESA mount kit for different application

    Specifications

    Model YY-C203
    Dimension WxHxD 55 x 200 x 200 mm
    M/B Form Factor MINI-ITX M/B
    Max. CPU Cooler Height 25mm
    HDD Bay 1 x 2.5" HDD/SDD bay
    FPIO USB2.0x2+Audio Ports (USB3.1 Gen1 optional)
    Cooling Fan (optional) 1 x 4cm
    Material SGCC sheet metal T0.6mm
    Power Supply (optional) DC-ATX PSU GM-120W/12V DC Adapter 60W
    Color Black
    Packing Carton Size 13.6x22.6x28.8cm
    MOQ 500 pcs
