C7 Series 7.5L Mini

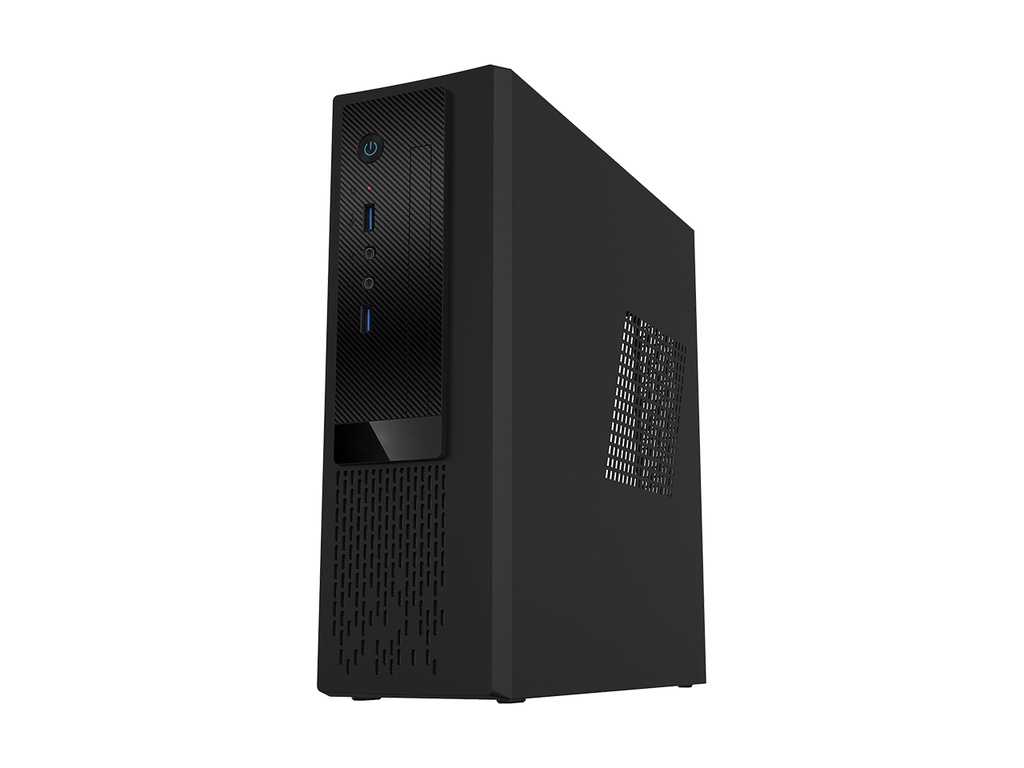

YY-C751 with Industrial Front Panel Design
https://www.yycase.com/web/image/product.template/50/image_1920?unique=1e9e204

YY-C751 chassis is a 7.5L mini ITX case, compatible with the TFX form factor power supply.
With a small footprint, it is orientated for both horizontal and vertical versions. In respect of the configuration, it has two PCI slots and can contain a 3.5" HDD, 2.5" HDD, and slim ODD. Designed with adequate openings, it has a fascinating cooling ability. Best of all, it offers multiple alternative FPIO configurations, which can be adjusted for different applications. Undoubted, it is a perfect choice for a light system.

    This combination does not exist.

    FeatureOptionsSpecifications

    Feature

    • Rigid structure for thermal and EMI considerations
    • Easy space for system assembly and cable routing

    Options

    YY-C751 w/o ODD port

    YY-C751 w/ODD port

    Specifications

    Model YY-C751
    Dimension WxHxD 280 x 92.5 x 290 mm
    M/B Form Factor MINI-ITX M/B
    Max. CPU Cooler Height 65mm
    HDD Bay 1 x Slim ODD bay
    1 x 3.5" HDD bay + 1 x 2.5" HDD bay
    FPIO USB2.0x2+Audio Ports (USB3.1 Gen1 optional)
    Expansion Slot 2 x Low Profile PCI
    Cooling Fan (optional) 1 x 8cm
    Material SGCC sheet metal T0.6mm
    Power Supply (optional) TFX form factor 200W~300W APFC/80+/Gold
    Color Black
    Packing Carton Size 38.5x18.7x39.5cm
    Container Load 1180pcs/20' CTNR
    2390pcs/40' CTNR
