Feature
- Free viewing angle with dual hinge of Pan and
- Without extended arm, space saving
- Made of Aluminum alloy, Robust and Security
Pan & Tilt range illustration of KP-H60A wall mounted and viewing in landscape

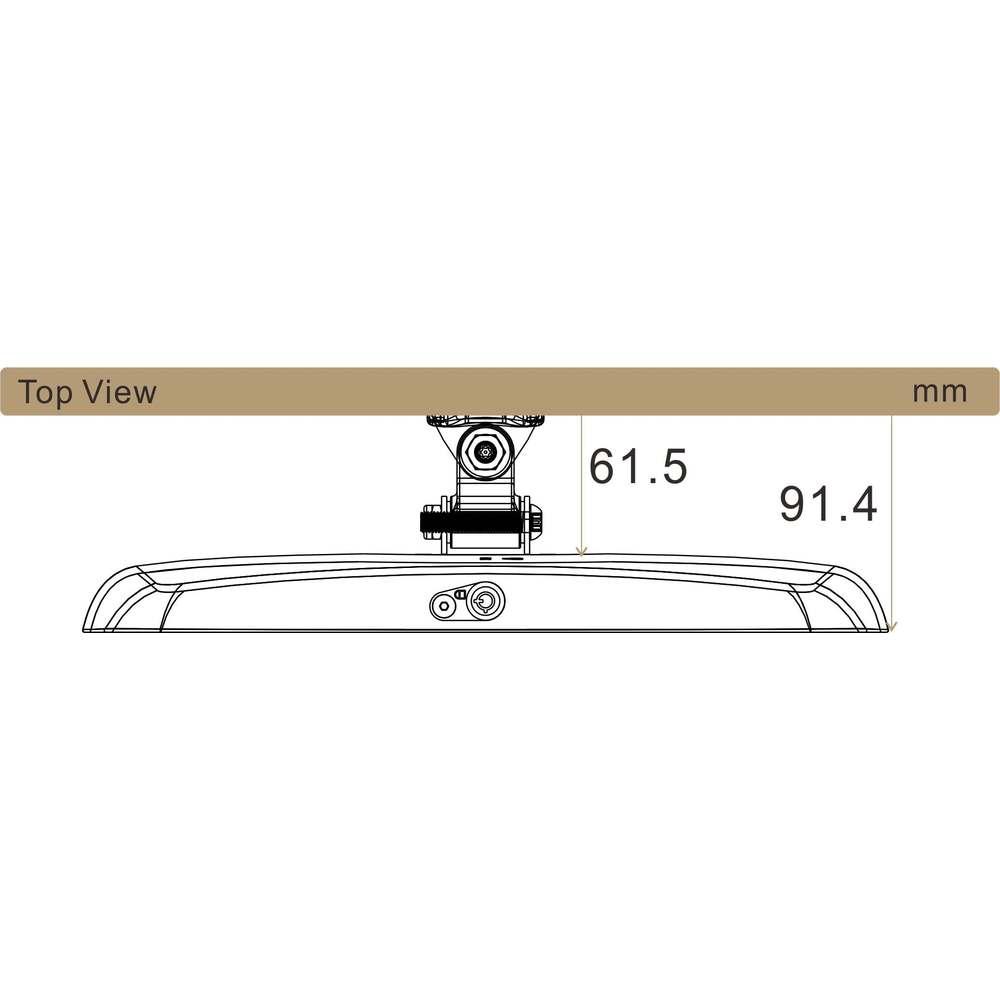

The distance from wall mount surface.
Pan range +/- 26.5°
Tilt range +/- 37°
Special Design
Specification
- Enclosure: ABS, Sheet Metal / 312 x 232 x 30mm / 750g
- Mount : Aluminum Alloy / 45x105x70mm / 280g
- Color: White / Black / customized color
- Retailer Packing or Bulk Packing
- User have to integrate Enclosure, Hinge with the screw kits
- Carton size : 43x24x11Hcm N.W. 1.1kg/G.W. 1.8kg
Options
Face plate options:
YKP01 - Front home blocked
Home button could be blocked optional
YKP02 - Front-exposed
Optimum screen opening to support most of 9.7" Tablet; Home button exposed; Camera exposed
