iPad Desktop Stand With Pan Hinge

YY-KP01-P622

YY-KP01-P622 is the iPad desktop stand with pivot function.

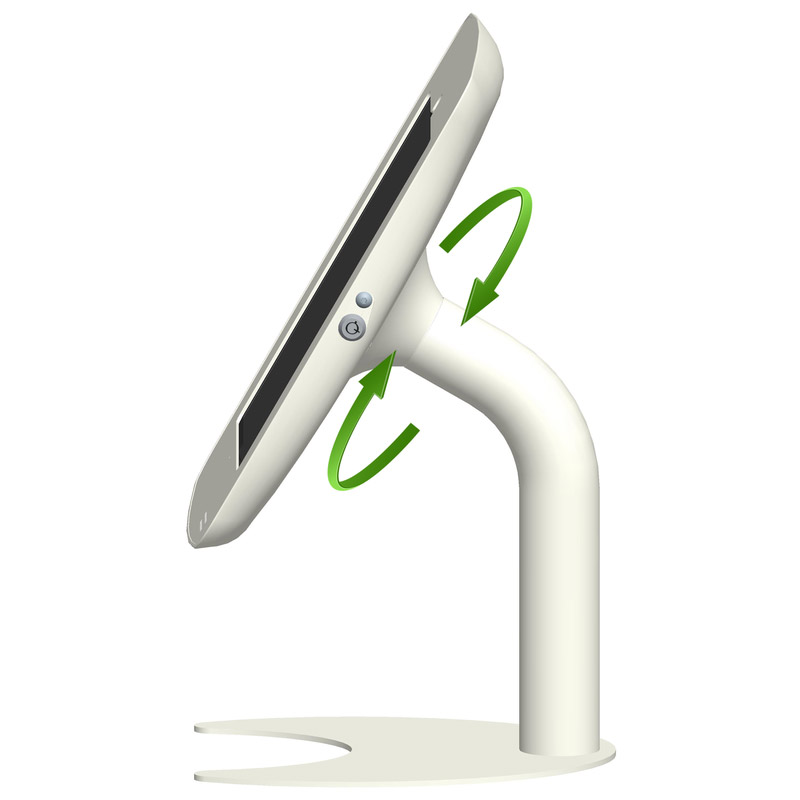

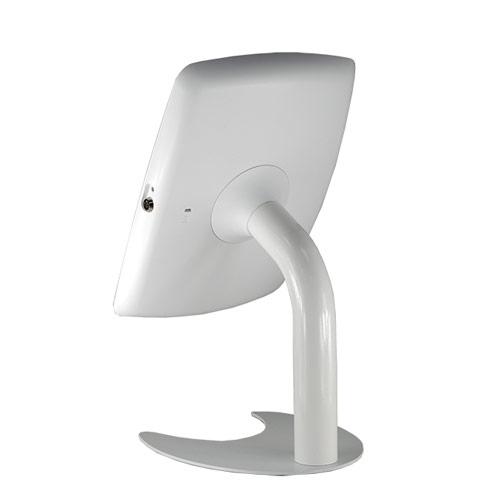

Though it is similar to YY-KP01-P312, it has a higher pole stand and different view angles. The viewing angle is 60 degrees, and the height of the tube is 225mm, which is suitable on a desk. With the featured pivot hinge, it is easy to set landscape or portrait mode, providing more flexibility for different contents. The tube integrates the space for cable routing management; the tablet can charge continuously while in the holder. Finally, the weighted base can withstand the torque force when using the tablet, which is undoubtedly sturdy enough for commercial applications. Therefore, it is suitable for both iPad POS stand or KIOSK stand.

Spotlight

iPad Enclosure and Desktop Stand With Pivot Hinge function

A higher desktop stand for iPad /Tablet , rotatable for pivot screen in landscape or portrait.

Application

Restaurant Kiosk, self-service, POS
Store Display device
Events Display device

Feature

Protect the iPad with security lock
Cable routing inside
Support iPad 2/3/4/Air/Air2/Samsung 9.7”
Faceplate : Camera and Home button exposed
Mount and fixed for Landscape or Portrait viewing
Viewing angle 60° / Tube Height 225mm

Photo Album

Specification

Enclosure: ABS, Sheet Metal / 312 x 232 x 30mm / 750g

Faceplate: Home button and Camera Exposed

Hinge & Tube : Steel / Φ40x242mm / 600g

Base : Sheet Metal / 224 x 200 x t3mm / 700g

Color: White / Black / customized color

Retailer Packing or Bulk Packing

User have to integrate Enclosure, Hinge with the screw kits

Carton size : 37x29x19Hcm N.W. 2.0kg/G.W. 3.0kg

YY-KP series Mount and Stand, its module design may supply the fixed mount or allowing user to get the ideal angle with friendly Pivot, Tilt and Swivel mechanical features. Not only for iPad, but also for the most of 10” tablet by custom request.
