Pan and tilt Solution

YY-KP01-T532 / T534
https://www.yycase.com/web/image/product.template/149/image_1920?unique=342e610

iPad Floor Stand with Tilt and Pivot function

YY-KP01-T532/534 is a robust iPad floor stand that has a sleek appearance. The simple white painting and round-cornered design bring exclusive user experiences. With the help of the specialized hinge, it supports swivel and pivot movement. Furthermore, the excellent weight distribution allows the floor stand to resist the pushing force in usage. In general, this floor stand turns the iPad into an ideal iPad KIOSK stand.

    This combination does not exist.

    FeaturesSpecificationOptions

    Features

    • Support iPad 2 / 3rd / 4 th and iPad Air
    • Camera open/Home closed (pin access)

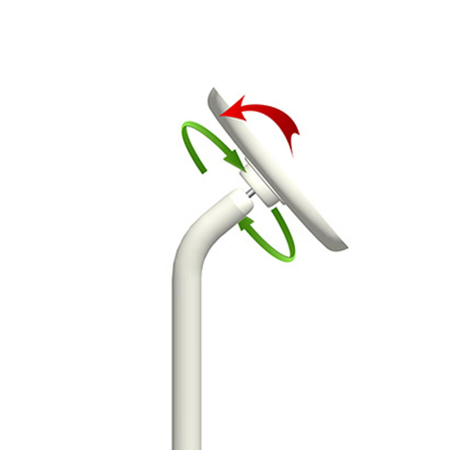

    • Tilt & Pivot Hinge - Adjustable viewing angle (0~90°) /rotatable for Landscape or Portrait
    • Viewing angle 50° / Tube Height 110cm
    • Moon Stylish Stand 532 , Weight added Base 415x320mm T 3mm 2.1 Kg
    • Floor Stand 534 , Weight added Base 400x400mm T 5mm 5.0 Kg

    Specification

    Dimension / Weight :

    • Enclosure 312 x 232 x 30mm/750g
    • Tube 53 (110cm/1.5kg)
    • Hinge/Mount : Φ95xH33mm @150g ( A / P / T / S )
    • Moon Stylish Stand - 532: 415 x 320 x t 3mm weight : 2.1kg
    • Option: Floor Stand Base 534:Φ400mm x t 5mm weight : 5.0kg

    Options

    Weight added Base:

    Moon Stylish Stand - 532
    Suitable for floor stand
    415x320mm t3mm 2.1Kg

    Floor Stand - 534
    Suitable for floor stand
    400x400mm t5mm 5Kg

    Face plate options:

    YKP01 - Front home blocked
    Home button could be blocked optional

    YKP02 - Front-exposed
    Optimum screen opening to support most of 9.7" Tablet; Home button exposed; Camera exposed
