iPad Desktop Stand With Tilt & Pan Hinge

YY-KP01-T622

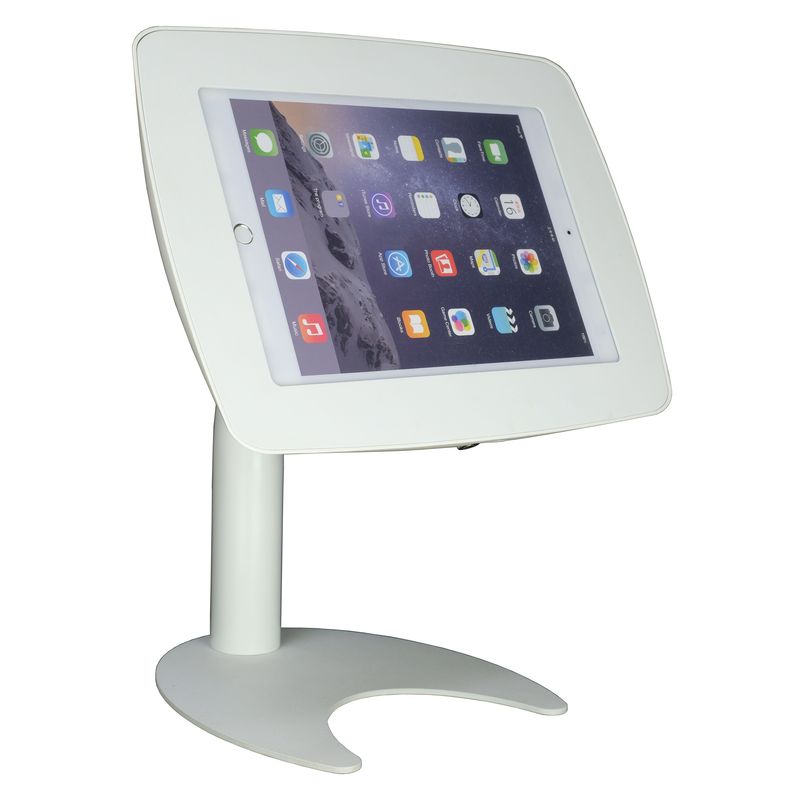

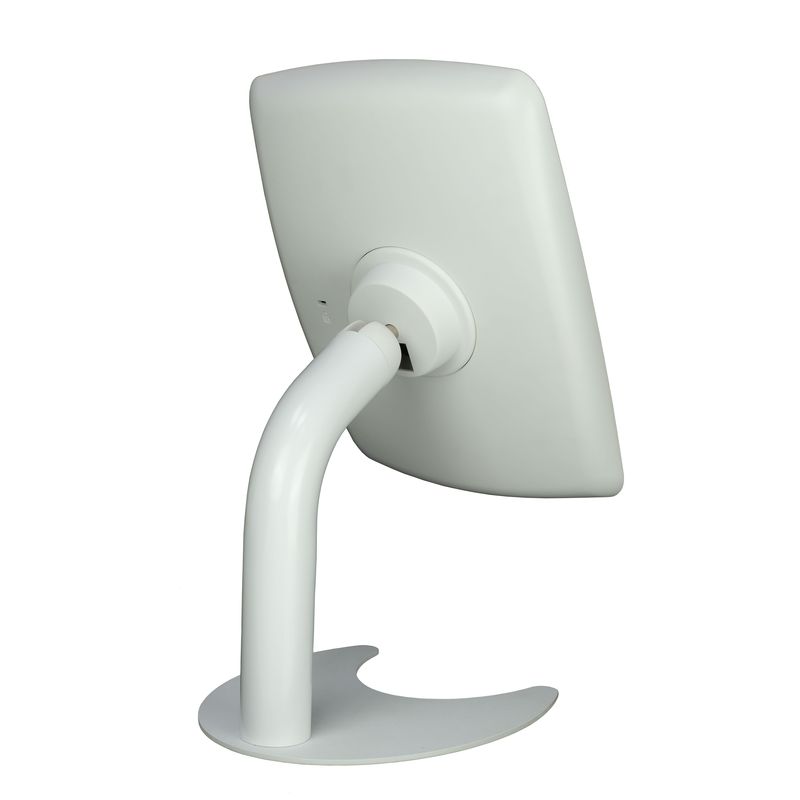

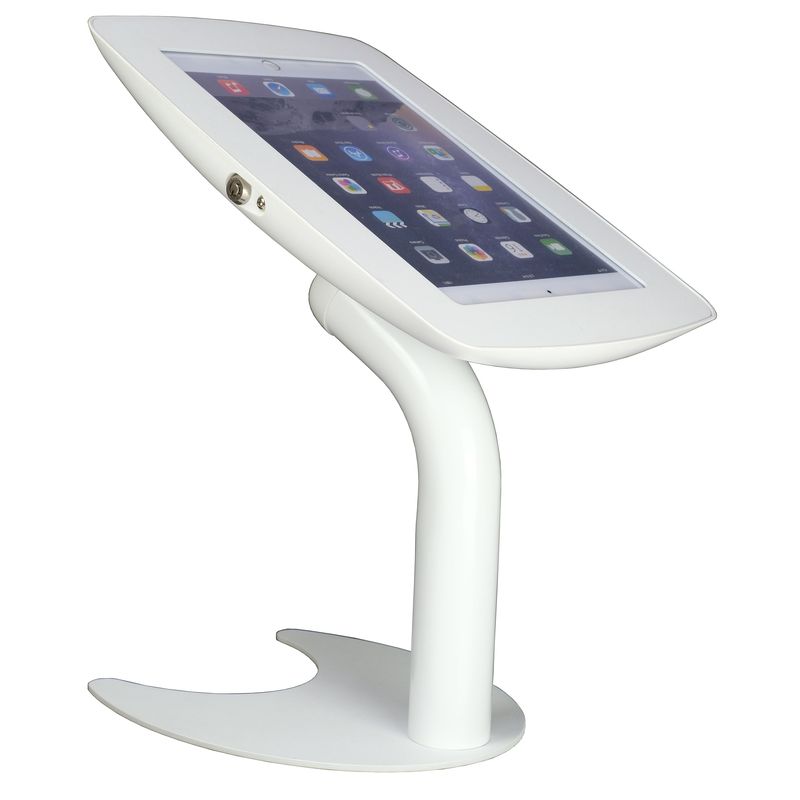

YY-KP01-T622 is an iPad desk stand with a minimalist curved outline design.
Compared to YY-KP01-T312, it has a 225mm-high pole stand and a 60 degrees view angle, which makes it suitable for desktop surfaces. It is elegant and friendly, as well as secure and robust. With a set of simple embedded Camlock, the device is perfectly protected from the maximum daily interactions. Best of all, the specialized hinge supports pivot and tilt movement. This feature supports adjustable screen angles and offers an effective way to engage with others. Besides, the excellent weight-distributed base can resist the pushing force when used. All in all, T622 is sure to meet your business needs, which is a fantastic choice for iPad KIOSK stand and iPad POS stand.

Spotlight

iPad Enclosure and Desktop Stand With Tilt & Pivot Hinge function

A higher desktop stand for iPad /Tablet with Tilt and Pivot hinge for viewing angle adjusting freely.

Application

Restaurant Kiosk, self-service, POS
Store Display device
Events Display device

Feature

Protect the iPad with security lock
Cable routing inside
Support iPad 2/3/4/Air/Air2/Samsung 9.7”
Faceplate : Camera and Home button exposed

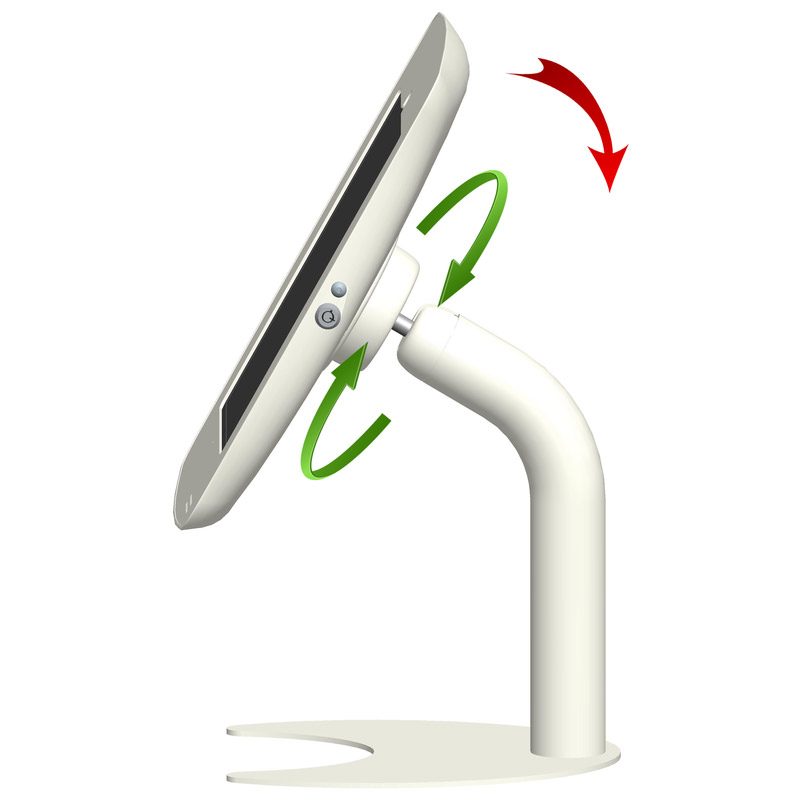

Tilt range : +/-45° Pivot range: 0~90°

Photo Album

Specification

Enclosure: ABS, Sheet Metal / 312 x 232 x 30mm / 750g

Faceplate: Home button and Camera Exposed

Hinge & Tube : Steel / Φ40x242mm / 600g

Base : Sheet Metal / 224 x 200 x t3mm / 700g

Color: White / Black / customized color

Retailer Packing or Bulk Packing

User have to integrate Enclosure, Hinge with the screw kits

Carton size : 37x29x19Hcm N.W. 2.0kg/G.W. 2.8kg

YY-KP series Mount and Stand, its module design may supply the fixed mount or allowing user to get the ideal angle with friendly Pivot, Tilt and Swivel mechanical features. Not only for iPad, but also for the most of 10” tablet by custom request.
